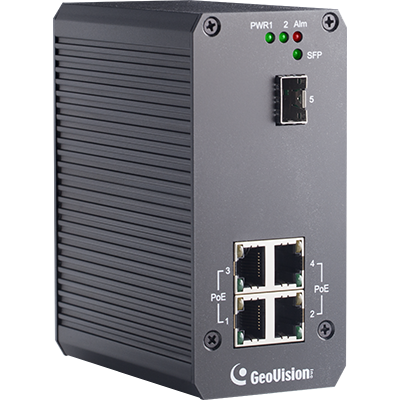

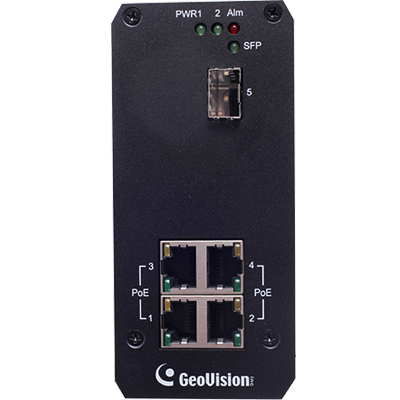

GV-POE0410-E

4-port Gigabit 802.3at PoE Switch

The GV-POE0410-E is a 4-port PoE Switch with 4 PoE+ 10/100/1000BaseT(X) port and 1 Gigabit SFP. The switch supports IEEE 802.3at Power over Ethernet standard with up to 30 W per port and maximum 130 W power consumption per system. No special network cable is required for connecting your powered devices (PD), such as IP cameras. The GV-POE0410-E is featured with a redundant power supply for automatic power backup and supports alarms alerting for power and link failure. The switch is designed for small network environment to strengthen its network connection and efficiency.
  • 4-port PoE+ 10/100/1000BaseT(X), 1 Gigabit SFP
  • IEEE 802.3at Compliant (4 Ports at Full 30W)
  • Max. 130 W Power Consumption
  • Extreme temperature support (‐40°C ~ 70°C /‐40°F ~ 158°F)
  • Auto-MDI/MDI-X
  • Auto-Negotiation

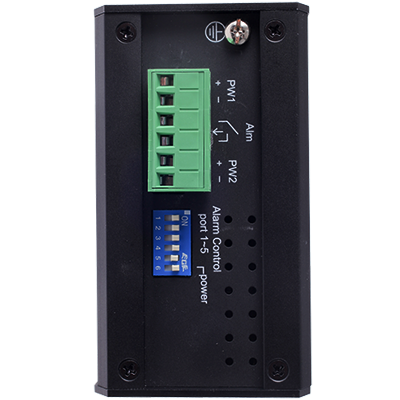

  • Alarm control
  • DIN-Rail Installation
  • Redundant DC power
  • 6 kV Surge Protection
  • Up to 4 GV-IP Cameras support

Note:
  • The switch is a plug-and-play device and compatible with all SFP modules.
  • Specifications are subject to change without prior notice.


Note:
  • The switch is a plug-and-play device and compatible with all SFP modules.
  • Specifications are subject to change without prior notice.
Model No Name Details
GV-LC The SFP transceiver complies with IEEE 802.3z 1000BaseSX Ethernet, and provides the media transmission distance up to 220 / 550 m.
GV-LC10 The SFP transceiver complies with IEEE 802.3z 1000BaseLX Ethernet, and provides the media transmission distance up to 10 km.
  • GV-POE0410-E x 1
  • GV-POE0410-E Quick Start Guide x 1​
