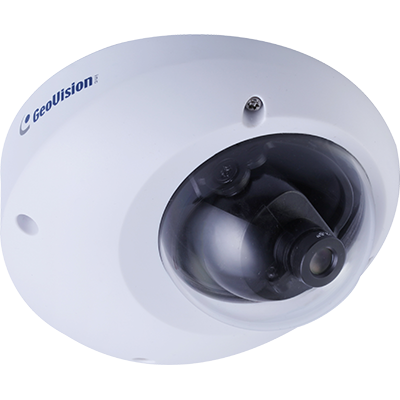

GV-MFD3401

3MP H.264 WDR Pro Mini Fixed Dome

The GV-MFD3401 Series offers an indoor, fixed, mini-sized network camera with different lens options. The camera can process scenes with contrasting intensity of lights and produce clear image using the built‐in WDR Pro. The camera is equipped with a USB port which supports wireless connection through GV-WiFi Adapter (optional) or external storage using a USB hard drive.

Models

ModelGV-MFD3401-0FGV-MFD3401-2FGV-MFD3401-3FGV-MFD3401-5FGV-MFD3401-6F
IrisFixedFixedFixedFixedFixed
Focal Length(mm)2.8mm8mm12mm3.8mm2.3mm
Maximum ApertureF/2.0F/1.6F/1.6F/1.8F/2.2
Image Format1/3"1/3"1/3"1/3"1/3"
  • 3MP Progressive Scan WDR Pro CMOS
  • Dual streams from H.264 and MJPEG
  • Up to 20 fps at 2048 × 1536
  • Day and night function (electronic)
  • USB slot for GV-WiFi Adapter or USB hard drive
  • Built-in micro SD card slot (SD/SDHC) for local storage
  • Tampering alarm
  • Wide Dynamic Range Pro (WDR Pro)
  • Two-way audio
  • 2D noise reduction
  • Defog
  • Motion detection
  • Privacy mask
  • IP address filtering
  • DC 5V / PoE (IEEE 802.3af)
  • Megapixel lens
  • Supports iPhone, iPad, Android & 3GPP
  • 31 languages on Web interface
  • ONVIF (Profile S) conformant

Note:
  • No memory card slot & local storage function for Argentina.
  • The power adapter can be excluded upon request.
  • Specifications are subject to change without notice.


Note:
  • No memory card slot & local storage function for Argentina.
  • The power adapter can be excluded upon request.
  • Specifications are subject to change without notice.
Model No Name Details
GV-Mount900 Wall Mount Bracket Dimensions: 154 x 108 x 50 mm (6.1 x 4.3 x 2")
Weight: 240 g (0.53 lb)
GV-Mount909 Wall Mount Bracket Dimensions: 170 x 150 x 110 mm (6.7 x 5.9 x 4.3")
Weight: 0.61 kg (1.34 lb)
GV-Mount910 Power Box Mount Bracket Dimensions: 112 x 98 x 7.5 mm (4.4 x 3.9 x 0.3")
Weight: 105 g (0.23 lb)
GV-Mount913 Power Box Mount Bracket Dimensions: Ø 146 x 7.5 mm (Ø 5.7 x 0.3")
Weight: 180 g (0.4 lb)
GV-Mount918 Wall Mount Bracket for MFD/MDR/EFD/EDR Dimensions: Ø 145 x 117 x 96 mm (Ø 5.71 x4.60 x 3.78")
Weight: 350 g (0.77 lb)
GV-PA191 PoE Adapter Power over Ethernet (PoE) Adapter The GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-POE Switch The GV-POE Switch is designed to provide power along with network connection for IP devices. The GV-POE Switch is available in various models with different numbers and types of ports.
Power Adapter Contact your sales representative for the countries and areas supported.
  • Mini Fixed Dome
  • Torx Wrench
  • Self Tapping Screw x 2
  • Screw Anchor x 2
  • Cable stopper
  • Short-Body RJ-45 Plug
  • 2-pin terminal block
  • Power Adapter
  • GV-IPCAM H.264 Software DVD
  • GV-NVR Software DVD
  • Warranty Card

Note:
  • No memory card slot & local storage function for Argentina.
  • The power adapter can be excluded upon request.
  • Specifications are subject to change without notice.

Demo Video

GV-MFD Series - Installation - Power Box Mount

GV-MFD Series - Installation - Hard-Ceiling Mount

GV-MFD Series - Installation - L-Shaped Wall Mount
