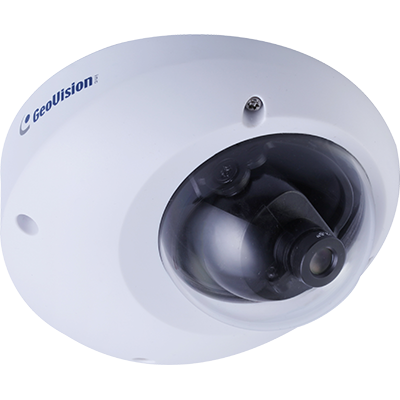

GV-MFD2501

2MP H.264 Super Low Lux WDR Mini Fixed Dome

The GV-MFD2501 Series is an indoor, fixed, mini-sized network camera with different lens options. With its super low lux CMOS image sensor, the camera can produce color image at near darkness. The camera is equipped with a USB port which supports wireless connection through GV-WiFi Adapter (optional) or an external storage using a USB hard drive.

Models

ModelGV-MFD2501-0FGV-MFD2501-1FGV-MFD2501-2FGV-MFD2501-3FGV-MFD2501-5FGV-MFD2501-6F
IrisFixedFixedFixedFixedFixedFixed
Focal Length(mm)2.8mm4mm8mm12mm3.8mm2.3mm
Maximum ApertureF/2.0F/1.5F/1.6F/1.6F/1.8F/2.2
Image Format1/3"1/3"1/3"1/3"1/3"1/3"
  • 1/2.8" progressive scan super low lux CMOS
  • Min. illumination at 0.02 lux
  • Dual streams from H.264 and MJPEG
  • Up to 30 fps at 1920 × 1080
  • Day and night function (electronic)
  • Mini USB slot for WiFi Adapter or USB hard drive
  • Built-in micro SD card slot (SD/SDHC) for local storage
  • Recording assigned by GV-Edge Recording Manager (Windows & Mac version)
  • Tampering alarm
  • Wide Dynamic Range (WDR)
  • 3D DNR (Digital Noise Reduction)
  • Two-way audio
  • Defog
  • Motion detection
  • Privacy mask
  • IP address filtering
  • DC 5V / PoE (IEEE 802.3af)
  • Megapixel lens
  • Supports iPhone, iPad, Android & 3GPP
  • 31 languages on Web interface
  • ONVIF (Profile S) conformant

Note:
  • No memory card slot & local storage function for Argentina.
  • The power adapter can be excluded upon request.
  • Specifications are subject to change without notice.


Note:
  • No memory card slot & local storage function for Argentina.
  • The power adapter can be excluded upon request.
  • Specifications are subject to change without notice.
Model No Name Details
GV-Mount900 Wall Mount Bracket Dimensions: 154 x 108 x 50 mm (6.1 x 4.3 x 2")
Weight: 240 g (0.53 lb)
GV-Mount909 Wall Mount Bracket Dimensions: 170 x 150 x 110 mm (6.7 x 5.9 x 4.3")
Weight: 0.61 kg (1.34 lb)
GV-Mount910 Power Box Mount Bracket Dimensions: 112 x 98 x 7.5 mm (4.4 x 3.9 x 0.3")
Weight: 105 g (0.23 lb)
GV-Mount913 Power Box Mount Bracket Dimensions: Ø 146 x 7.5 mm (Ø 5.7 x 0.3")
Weight: 180 g (0.4 lb)
GV-Mount918 Wall Mount Bracket for MFD/MDR/EFD/EDR Dimensions: Ø 145 x 117 x 96 mm (Ø 5.71 x4.60 x 3.78")
Weight: 350 g (0.77 lb)
GV-PA191 PoE Adapter Power over Ethernet (PoE) Adapter The GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-POE Switch The GV-POE Switch is designed to provide power along with network connection for IP devices. The GV-POE Switch is available in various models with different numbers and types of ports.
Power Adapter Contact your sales representative for the countries and areas supported.
  • Mini Fixed Dome
  • Torx Wrench
  • Self Tapping Screw x 2
  • Screw Anchor x 2
  • Cable stopper
  • Short-Body RJ-45 Plug
  • USB / Audio Y-cable
  • Power Adapter
  • GV-IPCAM H.264 Software DVD
  • GV-NVR Software DVD
  • Warranty Card

Note:
  • No memory card slot & local storage function for Argentina.
  • The power adapter can be excluded upon request.
  • Specifications are subject to change without notice.

Demo Video

GV-MFD Series - Installation - Power Box Mount

GV-MFD Series - Installation - Hard-Ceiling Mount

GV-MFD Series - Installation - L-Shaped Wall Mount
