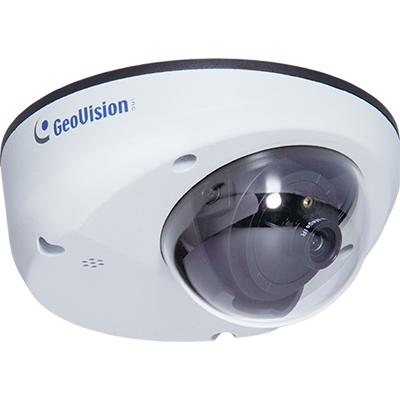

GV-MDR3400

3MP H.264 WDR Pro Mini Fixed Rugged Dome

The GV-MDR3400 Series offers an outdoor, fixed, mini-sized network camera with different lens options. The camera can process scenes with contrasting intensity of lights and produce clear image using the built-in WDR Pro. The camera conforms to IK10 and IP67 standards. It is adjustable in 3 axis (pan, tilt and rotate) and can be connected through PoE.

Models

ModelGV-MDR3400-1FGV-MDR3400-2F
IrisFixedFixed
Focal Length(mm)2.8mm3.8mm
Maximum ApertureF/2.0F/1.8
Image Format1/3"1/3"
  • 1/3.2" progressive scan CMOS
  • Dual streams from H.264 and MJPEG
  • Up to 20 fps at 2048 × 1536
  • Day and night function (electronic)
  • Vandal resistance (IK10 for metal casing)
  • Ingress protection (IP67)
  • EN50155 compliance for rolling stock applications
  • Wide temperature tolerance (-30 °C ~ 50 °C / -22 °F ~ 122 °F)
  • 3-axis mechanism: pan (-45° ~ +45°), tilt (0° ~ 90°), rotate (0° ~ 360°)
  • Built-in microphone
  • Built-in micro SD card slot (SD/SDHC) for local storage
  • Recording assigned by GV-Edge Recording Manager (Windows & Mac version)
  • PoE (IEEE 802.3af)
  • Wide Dynamic Range Pro (WDR Pro)
  • 2D noise reduction
  • Defog
  • Motion detection
  • Tampering alarm
  • Privacy mask
  • Text overlay
  • IP address filtering
  • Supports iPhone, iPad, Android & 3GPP
  • 31 languages on Web interface
  • ONVIF (Profile S) conformant

Note:
  • Specifications are subject to change without notice.


Note:
  • Specifications are subject to change without notice.
Model No Name Details
GV-Mount900 Wall Mount Bracket Dimensions: 154 x 108 x 50 mm (6.1 x 4.3 x 2")
Weight: 240 g (0.53 lb)
GV-Mount909 Wall Mount Bracket Dimensions: 170 x 150 x 110 mm (6.7 x 5.9 x 4.3")
Weight: 0.61 kg (1.34 lb)
GV-Mount910 Power Box Mount Bracket Dimensions: 112 x 98 x 7.5 mm (4.4 x 3.9 x 0.3")
Weight: 105 g (0.23 lb)
GV-Mount913 Power Box Mount Bracket Dimensions: Ø 146 x 7.5 mm (Ø 5.7 x 0.3")
Weight: 180 g (0.4 lb)
GV-Mount918 Wall Mount Bracket for MFD/MDR/EFD/EDR Dimensions: Ø 145 x 117 x 96 mm (Ø 5.71 x4.60 x 3.78")
Weight: 350 g (0.77 lb)
GV-PA191 PoE Adapter Power over Ethernet (PoE) Adapter The GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-POE Switch The GV-POE Switch is designed to provide power along with network connection for IP devices. The GV-POE Switch is available in various models with different numbers and types of ports.
  • Mini Fixed Rugged Dome with 2 options for its LAN connector (connector for motor vehicles or for general use)
  • Torx Wrench
  • Self Tapping Screw x 2
  • Screw Anchor x 2
  • Cable stopper
  • Cable Connector
  • Installation sticker
  • Silica gel bag x 2
  • Ferrite core for vehicle installation
  • Adhesive tape x 2
  • GV-IPCAM H.264 Software DVD
  • GV-NVR Software DVD
  • Warranty Card

Note:
  • Specifications are subject to change without notice.

GV-MDR Series - Installation - Wall Box Mount

GV-MDR Series - Installation - Hard-Ceiling Mount
