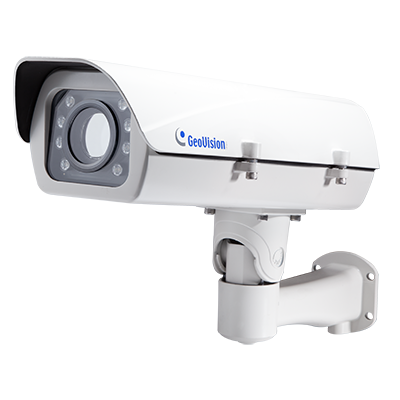

GV-LPR1200

1MP 10x Zoom B/W Network Camera

GV-LPR1200 is a 1 MP B/W network camera designed for recognition of reflective license plates on vehicles traveling at 200 km/h (124.27 mph) or less. With its multiple high power LEDs and intelligent IR, the camera is able to automatically adjust its shutter speed to the scene and produce clear license plate capture for one lane under low-light conditions. The motorized varifocal lens take the advantage of its motorized focus / zoom in that the user can remotely adjust the focus and zoom through the Web interface. It is weather proof (IP67) and also able to work in environments with temperatures ranging from -40°C (-40°F) to 50°C (122°F).

GV-LPR1200 is capable of recognizing the license plate numbers with the built-in LPR processor. GV-LPR1200 can compare captured license plates either with a standalone database created on GV-LPR1200, or a database downloaded from the access control software GV-ASManager. When there is a match, GV-LPR1200 will open a gate or barrier.
  • Megapixel B/W progressive scan CCD
  • Motorized varifocal lens for remote focus / zoom adjustment
  • Dual streams from MJPEG or H.264
  • Up to 30 fps at 1280 x 720
  • Maximum speed 200 km/h (124 mph)
  • Built-in LPR processor to perform recognition
  • Recognition for reflective License Plate only
  • Standalone database
  • Vandal resistance (IK10 for metal casing)
  • Ingress protection (IP67)
  • Maximum IR distance 20 m (65.6 ft)
  • Built-in heater and fan
  • Support for TV-out
  • 10x optical zoom
  • Two-way audio
  • Recognized plate numbers export
  • Support for I/O (2 in / 2 out)
  • Defog
  • Motion detection
  • Text Overlay
  • IP address filtering
  • Supports iPhone, iPad, Android & 3GPP
  • ONVIF (Profile S) conformant
  • 30 languages on Web interface

Note:
  • Specifications are subject to change without notice.


Note:
  • Specifications are subject to change without notice.
Model No Name Details
GV-Mount300 Convex Corner Adapter Kit Dimensions: 238.6 x 409.5 mm (9.4 x 16.1")
Weight: 4.27 kg (9.41 lb)
GV-Mount310 Concave Corner Adapter Kit Dimensions: 123.3 x 393.1 mm (4.9 x 15.5")
Weight: 2.96 kg (6.53 lb)
GV-Mount400 Pole Mount Bracket Kit (Ø 4 ~ 6) Bracket: 241 x 161 mm (9.5 x 6.3")
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 4 ~ 6"
GV-Mount410 Pole Mount Bracket Kit (Ø 6 ~ 7.5") Bracket: 241 x 161 mm (9.5 x 6.3")
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 6 ~ 7.5"
GV-Relay V2 The GV-Relay V2 is designed to expand the voltage load of GV IP devices. It provides 4 relay outputs, and each can be set as normally open (NO) or normally closed (NC) independently as per your requirement.
GV-POE Switch The GV-POE Switch is designed to provide power along with network connection for IP devices. The GV-POE Switch is available in various models with different numbers and types of ports.
  • The GV-LPR1200 camera
  • Screw Anchor x 4
  • Screw x 4
  • Washer x 4
  • Torx Wrench x 1
  • Power Adapter (DC 12V, 5A)
  • AC Power Cord
  • Silica Gel Bag x 1
  • Adhesive tape for Silica Gel Bag x 1
  • GV-IP LPR Camera Software CD
  • GV-NVR Software DVD
  • GV-ASManager Software DVD
  • GV-LPR Camera Installation Guide
  • Warranty Card

Note:
  • Specifications are subject to change without notice.

Introduction to GV-LPR1200
