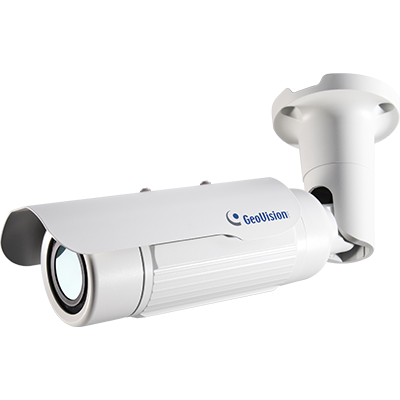

GV-IP LPR Camera 5R

1.3 MP B/W Network Camera

Ideal for parking lot installation, the GV-IP LPR Camera 5R is a 1.3 MP B/W network camera designed for recognition of reflective license plates on vehicles traveling at 60 km/hr (37 mph) or less. With its multiple LEDs and intelligent IR, the camera is able to automatically adjust its shutter speed to the scene and produce clear license plate capture under low-light conditions. The motorized varifocal lens take the advantage of its motorized focus / zoom in that the user can remotely adjust the focus and zoom through the Web interface. It is weather proof (IP67) and also able to work in environments with temperatures from as low as -20 °C ~ 50 °C (-4 °F ~ 122 °F ).
  • 1.3 megapixel B/W progressive scan CMOS
  • Motorized varifocal lens for remote focus / zoom adjustment
  • Dual streams from MJPEG or H.264
  • Up to 30 fps at 1280 x 1024
  • Recognition for reflective License Plate only
  • Maximum Speed 60 km/h (37 mph)
  • Ingress protection (IP67)
  • Vandal resistance (IK10 for metal casing)
  • Built-in 12 IR LEDs
  • Built-in fan
  • Defog
  • Motion detection
  • Privacy Mask
  • Text Overlay
  • IP address filtering
  • Power supplied through PoE (IEEE 802.3 at)
  • Supports iPhone, iPad, Android & 3GPP
  • ONVIF (Profile S) conformant
  • 31 languages on Web interface

Note:
  • Specifications are subject to change without notice.


Note:
  • Specifications are subject to change without notice.
Model No Name Details
GV-Mount300 Convex Corner Adapter Kit Dimensions: 238.6 x 409.5 mm (9.4 x 16.1")
Weight: 4.27 kg (9.41 lb)
GV-Mount310 Concave Corner Adapter Kit Dimensions: 123.3 x 393.1 mm (4.9 x 15.5")
Weight: 2.96 kg (6.53 lb)
GV-Mount400 Pole Mount Bracket Kit (Ø 4 ~ 6) Bracket: 241 x 161 mm (9.5 x 6.3")
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 4 ~ 6"
GV-Mount410 Pole Mount Bracket Kit (Ø 6 ~ 7.5") Bracket: 241 x 161 mm (9.5 x 6.3")
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 6 ~ 7.5"
GV-PA191 PoE Adapter Power over Ethernet (PoE) Adapter The GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-POE Switch The GV-POE Switch is designed to provide power along with network connection for IP devices. The GV-POE Switch is available in various models with different numbers and types of ports.
  • GV-IP LPR Camera 5R
  • Self Tapping Screw x 3
  • Plastic Screw Anchor x 3
  • Torx Wrench x 2
  • Sun-Shield Cover Kit (1 Sun-Shield Cover, 2 Philips Head Screws, 2 Plastic Screw Spacers and 2 Hexagon Screws included)
  • Silica Gel Bag x 2 (1 already installed)
  • GV-IP LPR Camera Software CD
  • GV-NVR Software DVD
  • GV-ASManager Software DVD

Note:
  • Specifications are subject to change without notice.

Introduction to GV-IP LPR Camera 5R
