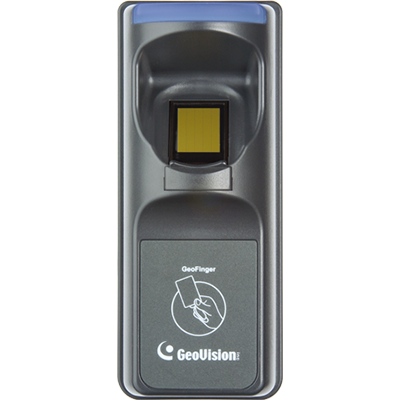

GV-GF1911 GV-GF1912

GF Fingerprint Reader

The GV-GF Fingerprint Reader works with GV-AS / GV-EV Controller and GV-ASManager to create a complete access control system.

With the GV-GF Fingerprint Reader only, you can also enroll and manage users through the supplied Manager Enroll Card and Delete Card, along with optional MIFARE user cards.
  • Work with GV-AS / GV-EV Controller and GV-ASManager
  • Three types of access modes: card only, fingerprint only and card plus fingerprint
  • Fingerprint templates stored on the user card
  • Three types of communication interfaces for connecting with GV-AS Controller: Wiegand 26, RS-485 and TCP/IP (LAN)
  • GV-GF1911: Enroll fingerprints through RS-485 connection with GV-ASManager (Fingerprint Only Mode)
  • Support for GV-Proximity Cards with GID (Geovision Identifier) to enhance security

Note:
  • RS485 and TCP/IP interfaces only support GeoVision controllers, while Wiegand interface supports both GeoVision and 3rd party controllers (Wiegand 26 Bits).
  • For Card + Fingerprint Mode and Card Only Mode, it is required to purchase GeoVision GV-AS ID Card / Key Fob & GV-UHF Tag to work with.
  • Data synchronization with GV-AS Controller and GV-ASManager through LAN is only supported
  • when the following controller firmware version and software version work together:
    * GV-AS100 / 110 / 120: V1.06 or later
    * GV-AS400: V1.04 or later
    * GV-AS210 / 810: V1.0 or later
    * GV-AS410: V1.1 or later
    * GV-AS2110 / 4110 / 8110: V1.23 or later
  • Specifications are subject to change without notice.


Note:
  • RS485 and TCP/IP interfaces only support GeoVision controllers, while Wiegand interface supports both GeoVision and 3rd party controllers (Wiegand 26 Bits).
  • For Card + Fingerprint Mode and Card Only Mode, it is required to purchase GeoVision GV-AS ID Card / Key Fob & GV-UHF Tag to work with.
  • Data synchronization with GV-AS Controller and GV-ASManager through LAN is only supported
  • when the following controller firmware version and software version work together:
    * GV-AS100 / 110 / 120: V1.06 or later
    * GV-AS400: V1.04 or later
    * GV-AS210 / 810: V1.0 or later
    * GV-AS410: V1.1 or later
    * GV-AS2110 / 4110 / 8110: V1.23 or later
  • Specifications are subject to change without notice.
Model No Name Details
GV-AS ID Card & GV-AS ID Key Fob For Card Mode, the GV-AS ID Card / Tag is required. 13.56 MHz cards and tags are available.
GV-HUB V2 An easy way for serial port extension. This hub can add 4 RS-232/RS-485 serial ports through the GV-Hot Swap VMS V5´s USB port.
GV-COM V2 This unit can add 1 RS-232/RS-485 serial port through the GV-Hot Swap VMS V5´s USB port.
GV-COM V3 This unit can add 1 RS-485 port to your computer through a USB connector.
GV-Net / IO Card Only works with GV-AS100 / 110 / 120. GV-Net / IO Card can convert the standard RS-232 signal of one controller to RS-485, allowing the controller to connect to a computer.
PC Service Package The package includes a USB cable for connecting the fingerprint reader to a computer and a reader mount to hold the reader for fingerprint enrollment.
  • Fingerprint reader
  • Data Cable (of 100 cm / 3.28 feet)
  • Manager Enroll Card
  • Manager Delete Card
  • Self-Tapping Screw (M3 x 6L) x 2
  • Self-Tapping Screw (M4 x 15L) x 3
  • Plastic Screw Anchor x 4
  • Buzzer Hole Plate
  • Security Torx
  • Software CD
  • Warranty Card

Note:
  • RS485 and TCP/IP interfaces only support GeoVision controllers, while Wiegand interface supports both GeoVision and 3rd party controllers (Wiegand 26 Bits).
  • For Card + Fingerprint Mode and Card Only Mode, it is required to purchase GeoVision GV-AS ID Card / Key Fob & GV-UHF Tag to work with.
  • Data synchronization with GV-AS Controller and GV-ASManager through LAN is only supported
  • when the following controller firmware version and software version work together:
    * GV-AS100 / 110 / 120: V1.06 or later
    * GV-AS400: V1.04 or later
    * GV-AS210 / 810: V1.0 or later
    * GV-AS410: V1.1 or later
    * GV-AS2110 / 4110 / 8110: V1.23 or later
  • Specifications are subject to change without notice.

Note:
  • RS485 and TCP/IP interfaces only support GeoVision controllers, while Wiegand interface supports both GeoVision and 3rd party controllers (Wiegand 26 Bits).
  • For Card + Fingerprint Mode and Card Only Mode, it is required to purchase GeoVision GV-AS ID Card / Key Fob & GV-UHF Tag to work with.
  • Data synchronization with GV-AS Controller and GV-ASManager through LAN is only supported
  • when the following controller firmware version and software version work together:
    * GV-AS100 / 110 / 120: V1.06 or later
    * GV-AS400: V1.04 or later
    * GV-AS210 / 810: V1.0 or later
    * GV-AS410: V1.1 or later
    * GV-AS2110 / 4110 / 8110: V1.23 or later
  • Specifications are subject to change without notice.
