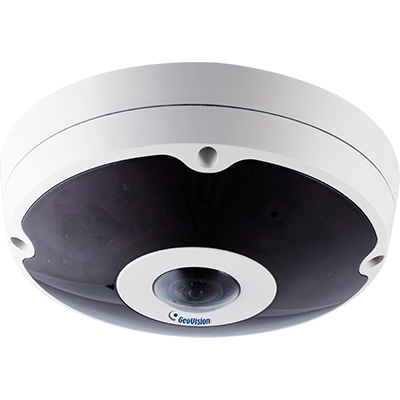

GV-FER5700

5MP H.265 Low Lux WDR IR Fisheye Rugged IP Camera

GV-FER5700 is a 5 MP outdoor fisheye camera that can support H.265 video codec to achieve better compression ratio while maintaining high picture quality at reduced network bandwidths. GV-FER5700 allows you to monitor all angles of a location and it can be installed to the ceiling, wall, wall corner and the pole. Equipped with automatic IR‐cut filter and IR LEDs, GV-FER5700 is capable of day and night surveillance. The camera’s distorted hemispherical image can be converted into a conventional rectilinear projection. Without installing any software, you can watch live view and utilize functions such as video recording, privacy mask, and alert notification through the Web interface. In addition, the camera seamlessly integrates with the GV-System and GV-VMS, providing advanced monitoring and video management features.
  • 1/1.8" progressive scan CMOS
  • Dual streams from H.265, H.264, and MJPEG
  • Up to 30 fps at 2560 × 2048
  • Day and Night function (with removable IR-cut filter)
  • Intelligent IR
  • Vandal resistance (IK10+ for metal casing)
  • Ingress protection (IP67)
  • DC 12V / PoE+ (IEEE 802.3at)
  • Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I) for local storage
  • USB slot for GV-WiFi Adapter or USB hard drive
  • One sensor input and one alarm output
  • Built-in microphone
  • Digital Object Tracking
  • Provides 360° and 180° panorama view
  • Different angle of view accessible by multiple users at the same time
  • Playback from any view angle and zoom level
  • No mechanical moving parts
  • Two-way audio
  • Wide Dynamic Range (WDR)
  • Low lux enhancement
  • 3D noise reduction
  • Smart streaming
  • Tampering alarm
  • Virtual PTZ function
  • Auto Pan function
  • Privacy mask
  • Visual automation
  • Text overlay
  • 31 languages on Web interface
  • ONVIF (Profile S) conformant
  • Recording assigned by GV-Edge Recording Manager (Windows version)

Note:
  • No memory card slot & local storage function for Argentina.
  • Smart streaming requires either GV‐DVR / NVR V8.7.0.0 or GV‐VMS V16.10.3.
  • Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  • For GV-Mount200 / 206, leave a distance of 1M or more between the camera body and the wall to ensure the image quality.
  • Specifications are subject to change without notice.


Note:
  • No memory card slot & local storage function for Argentina.
  • Smart streaming requires either GV‐DVR / NVR V8.7.0.0 or GV‐VMS V16.10.3.
  • Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  • For GV-Mount200 / 206, leave a distance of 1M or more between the camera body and the wall to ensure the image quality.
  • Specifications are subject to change without notice.
Model No Name Details
GV-Mount100 Straight Tube and Junction Box Kit Dimensions: 200 x 170 x 257.5 mm (7.9 x 6.7 x 10.1")
Weight: 3.17 kg (6.99 lb)
GV-Mount101 Straight Tube Kit Dimensions: 219 x 125 x 332 mm (8.6 x 4.9 x 13.1")
Weight: 1.8 kg (3.97 lb)
GV-Mount200 Wall Pendant Tube Dimensions: 225 x 140 x 250 mm (8.9 x 5.5 x 9.8")
Weight: 900 g (1.98 lb)
GV-Mount206 Wall Mount Bracket Kit Dimensions: 126.5 x 211.3 x 176.85 mm / 5 x 8.3 x 6.96" (L x W x diameter)
Weight: 0.93 kg (2.06 lb)
GV-Mount 208-2 Swan Neck Mount Dimension: 1043 x 519 x 256 mm (41.06 x 20.43 x 10.08")
Weight: 10.5 kg (23.15 lb)
GV-Mount702 Extension Tube Four options are available.
Dimensions: Ø 5.4 x 10 or 20 or 30 or 50 cm
(Ø 2.1 x 3.9 or 7.9 or 11.8 or 19.7")
Weight: 180 g or 390 g or 550 g or 800 g
(0.4 lb or 0.86 lb or 1.21lb or 1.76 lb)
GV-Mount903 GV-FE / GV-VD Dome Housing Dimensions: Ø 186 x 97.5 mm (Ø 7.3 x 3.8")
Weight: 700 g (1.54 lb)
GV-Mount904-1 Tilting Wall Mount Bracket Dimensions: Ø 159.1 x 40.5 mm (Ø 6.3 x 1.6")
Weight: 350 g (0.77 lb)
GV-Mount912 Power Box Mount Bracket Dimensions: Ø 146 x 10.5 mm (Ø 5.7 x 0.4")
Weight: 180 g (0.4 lb)
GV-WiFi Adaptor V2 Dimensions (H x W x D): 15 x 15 x 155 mm (0.59 x 0.59 x 6.10")
Weight: 0.01 kg (0.02 lb)
GV-POE Switch The GV-POE Switch is designed to provide power along with network connection for IP devices. The GV-POE Switch is available in various models with different numbers and types of ports.
Power Adapter Contact your sales representative for the countries and areas supported.
  • H.265 Fisheye Camera
  • Back Plate
  • Plate Screw x 3
  • Plastic Screw Anchor x 3
  • Torx Wrench
  • RJ-45 Connector
  • Data Cable
  • Terminal Block
  • Installation Sticker
  • Ruler
  • Silica Gel Bag x 2
  • Door-Plug
  • GV-IPCAM Software DVD
  • GV-Software DVD
  • Warranty Card

Note:
  • No memory card slot & local storage function for Argentina.
  • Smart streaming requires either GV‐DVR / NVR V8.7.0.0 or GV‐VMS V16.10.3.
  • Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  • For GV-Mount200 / 206, leave a distance of 1M or more between the camera body and the wall to ensure the image quality.
  • Specifications are subject to change without notice.

Setting up GV-Fisheye Cameras on GV-VMS (GV-Fisheye Camera Dewarping on GV-VMS)

GV-Fisheye Camera Dewarping on GV-Video Wall
