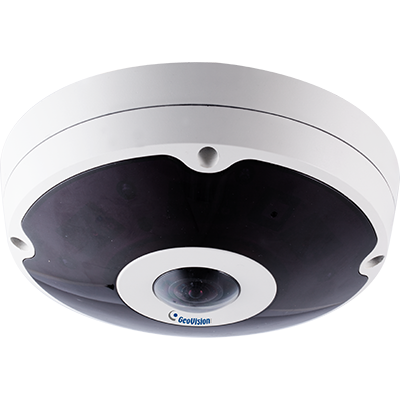

GV-FER12203

12MP H.264 Low Lux IR Fisheye Rugged IP Camera

GV-FER12203 is a 12 MP outdoor IR fisheye camera that allows you to monitor all angles of a location. It can be installed to the ceiling and the wall. The camera’s distorted hemispherical image can be converted into a conventional rectilinear projection. Without installing any software, you can watch live view and utilize functions such as motion detection, privacy mask, and alert notification through the Web interface. In addition, the camera seamlessly integrates with the GV-System and GV-VMS, providing advanced monitoring and video management features.
  • 1/1.7" progressive scan CMOS
  • Dual streams from H.264 and MJPEG
  • Up to 15 fps at 4000 × 3000
  • Day and Night function (with removable IR-cut filter)
  • Vandal resistance (IK10+ for metal casing)
  • Ingress protection (IP67)
  • DC 12V / AC 24V / PoE+ (IEEE 802.3at)
  • Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I) for local storage
  • USB slot for WiFi adapter
  • One sensor input and one alarm output
  • Built-in microphone
  • Digital Object Tracking
  • Provides 360° and 180° panorama view
  • Different angle of view accessible by multiple users at the same time
  • Playback from any view angle and zoom level
  • No mechanical moving parts
  • Two-way audio
  • Low lux enhancement
  • 3D noise reduction
  • Smart streaming
  • Tampering alarm
  • Virtual PTZ function
  • Auto Pan function
  • Privacy mask
  • Visual automation
  • Text overlay
  • 31 languages on Web interface
  • ONVIF (Profile S) conformant
  • Recording assigned by GV-Edge Recording Manager (Windows version)

Note:
  • No Memory Card Slot & local storage function for Argentina.
  • Smart streaming requires either GV-NVR V8.7.0.0 or GV-VMS V16.10.3.
  • The power adapter can be excluded upon request.
  • Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  • For GV-Mount200 / 206, leave a distance of 1M or more between the camera body and the wall to ensure the image quality.
  • Specifications are subject to change without notice.


Note:
  • No Memory Card Slot & local storage function for Argentina.
  • Smart streaming requires either GV-NVR V8.7.0.0 or GV-VMS V16.10.3.
  • The power adapter can be excluded upon request.
  • Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  • For GV-Mount200 / 206, leave a distance of 1M or more between the camera body and the wall to ensure the image quality.
  • Specifications are subject to change without notice.
Model No Name Details
GV-Mount100 Straight Tube and Junction Box Kit Dimensions: 200 x 170 x 257.5 mm (7.9 x 6.7 x 10.1")
Weight: 3.17 kg (6.99 lb)
GV-Mount101 Straight Tube Kit Dimensions: 219 x 125 x 332 mm (8.6 x 4.9 x 13.1")
Weight: 1.8 kg (3.97 lb)
GV-Mount200 Wall Pendant Tube Dimensions: 225 x 140 x 250 mm (8.9 x 5.5 x 9.8")
Weight: 900 g (1.98 lb)
GV-Mount206 Wall Mount Bracket Kit Dimensions: 126.5 x 211.3 x 176.85 mm / 5 x 8.3 x 6.96" (L x W x diameter)
Weight: 0.93 kg (2.06 lb)
GV-Mount 208-2 Swan Neck Mount Dimension: 1043 x 519 x 256 mm (41.06 x 20.43 x 10.08")
Weight: 10.5 kg (23.15 lb)
GV-Mount702 Extension Tube Four options are available.
Dimensions: Ø 5.4 x 10 or 20 or 30 or 50 cm
(Ø 2.1 x 3.9 or 7.9 or 11.8 or 19.7")
Weight: 180 g or 390 g or 550 g or 800 g
(0.4 lb or 0.86 lb or 1.21lb or 1.76 lb)
GV-Mount903 GV-FE / GV-VD Dome Housing Dimensions: Ø 186 x 97.5 mm (Ø 7.3 x 3.8")
Weight: 700 g (1.54 lb)
GV-Mount904-1 Tilting Wall Mount Bracket Dimensions: Ø 159.1 x 40.5 mm (Ø 6.3 x 1.6")
Weight: 350 g (0.77 lb)
GV-Mount912 Power Box Mount Bracket Dimensions: Ø 146 x 10.5 mm (Ø 5.7 x 0.4")
Weight: 180 g (0.4 lb)
GV-WiFi Adaptor V2 Dimensions (H x W x D): 15 x 15 x 155 mm (0.59 x 0.59 x 6.10")
Weight: 0.01 kg (0.02 lb)
GV-Relay V2 The GV-Relay V2 is designed to expand the voltage load of GV IP devices. It provides 4 relay outputs, and each can be set as normally open (NO) or normally closed (NC) independently as per your requirement.
GV-POE Switch The GV-POE Switch is designed to provide power along with network connection for IP devices. The GV-POE Switch is available in various models with different numbers and types of ports.
Power Adapter Contact your sales representative for the countries and areas supported.
  • Fisheye Camera
  • Back Plate
  • Plate Screw x 3
  • Plastic Screw Anchor x 3
  • Torx Wrench
  • RJ-45 Connector
  • Data Cable
  • Terminal Block
  • Installation Sticker
  • Ruler
  • Silica Gel Bag x 2
  • Power Adapter
  • GV-IPCAM H.264 Software DVD
  • GV-NVR Software DVD
  • Warranty Card

Note:
  • No Memory Card Slot & local storage function for Argentina.
  • Smart streaming requires either GV-NVR V8.7.0.0 or GV-VMS V16.10.3.
  • The power adapter can be excluded upon request.
  • Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  • For GV-Mount200 / 206, leave a distance of 1M or more between the camera body and the wall to ensure the image quality.
  • Specifications are subject to change without notice.

Setting up GV-Fisheye Cameras on GV-VMS (GV-Fisheye Camera Dewarping on GV-VMS)

GV-Fisheye Camera Dewarping on GV-Video Wall
