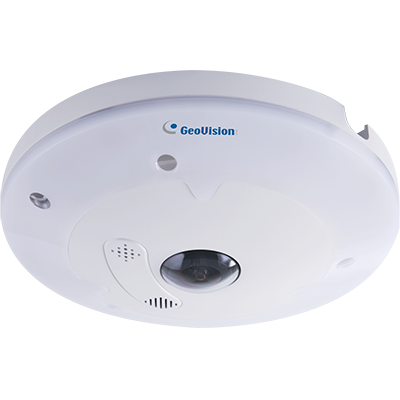

GV-FE5303

5MP H.264 WDR IR Fisheye IP Camera

GV-FE5303 is an indoor fisheye camera that allows you to monitor all angles of a location. It can be installed to the ceiling and the wall. The camera is equipped with an IR LED ring that provides infrared illumination under low-light situations. Its distorted hemispherical image of the camera can be converted into a conventional rectilinear projection. Without installing any software, you can watch live view and utilize functions such as motion detection, privacy mask, and alert notification through the Web interface. In addition, the camera seamlessly integrates with the GV-System, providing advanced monitoring and video management features.
  • 1/2.5" progressive scan CMOS
  • Dual streams from H.264 and MJPEG
  • Up to 10 fps at 2560 × 1920
  • Day and Night function (with removable IR-cut filter)
  • IR ring with effective distance up to 10 m (32.81 ft)
  • Vandal resistance (IK10+ for metal casing)
  • POE+ (IEEE 802.3at)
  • Mini USB slot for WiFi Adapter or USB hard drive
  • Built-in micro SD card slot (SD/SDHC) for local storage
  • Recording assigned by GV-Edge Recording Manager (Windows & Mac version)
  • Built-in microphone and speaker
  • Digital Object Tracking
  • Provides 360° and 180° panorama view
  • Different angle of view accessible by multiple users at the same time
  • Playback from any view angle and zoom level
  • No mechanical moving parts
  • Two-way audio
  • Wide Dynamic Range (WDR)
  • Defog
  • Tampering alarm
  • Virtual PTZ function
  • Auto Pan function
  • Privacy mask
  • Visual automation
  • Text overlay
  • 31 languages on Web interface
  • ONVIF (Profile S) conformant

Note:
  • No Memory card slot & local storage function for Argentina.
  • The power adapter (DC 12V, 1.25A) can be excluded upon request.
  • Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  • For GV-Mount200 / 205, leave a distance of 1M or more between the camera body and the wall to ensure the image quality.
  • Specifications are subject to change without notice.


Note:
  • No Memory card slot & local storage function for Argentina.
  • The power adapter (DC 12V, 1.25A) can be excluded upon request.
  • Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  • For GV-Mount200 / 205, leave a distance of 1M or more between the camera body and the wall to ensure the image quality.
  • Specifications are subject to change without notice.
Model No Name Details
GV-Mount100 Straight Tube and Junction Box Kit Dimensions: 200 x 170 x 257.5 mm (7.9 x 6.7 x 10.1")
Weight: 3.17 kg (6.99 lb)
GV-Mount101 Straight Tube Kit Dimensions: 219 x 125 x 332 mm (8.6 x 4.9 x 13.1")
Weight: 1.8 kg (3.97 lb)
GV-Mount200 Wall Pendant Tube Dimensions: 225 x 140 x 250 mm (8.9 x 5.5 x 9.8")
Weight: 900 g (1.98 lb)
GV-Mount205 Wall Mount Bracket Kit Dimensions: 126.5 x 203 x 160 mm / 5 x 8 x 6.3" (L x W x diameter)
Weight: 0.5 kg (1.1 lb)
Note: To ensure the image quality, leave a distance of 1M or more between the camera body and the wall.
GV-Mount 208-2 Swan Neck Mount Dimension: 1043 x 519 x 256 mm (41.06 x 20.43 x 10.08")
Weight: 10.5 kg (23.15 lb)
GV-Mount702 Extension Tube Four options are available.
Dimensions: Ø 5.4 x 10 or 20 or 30 or 50 cm
(Ø 2.1 x 3.9 or 7.9 or 11.8 or 19.7")
Weight: 180 g or 390 g or 550 g or 800 g
(0.4 lb or 0.86 lb or 1.21lb or 1.76 lb)
GV-Mount903 GV-FE / GV-VD Dome Housing Dimensions: Ø 186 x 97.5 mm (Ø 7.3 x 3.8")
Weight: 700 g (1.54 lb)
GV-Mount904 Tilting Wall Mount Bracket Dimensions: Ø 159.1 x 40.5 mm (Ø 6.3 x 1.6")
Weight: 400 g (0.88 lb)
GV-Mount912 Power Box Mount Bracket Dimensions: Ø 146 x 10.5 mm (Ø 5.7 x 0.4")
Weight: 180 g (0.4 lb)
GV-POE Switch The GV-POE Switch is designed to provide power along with network connection for IP devices. The GV-POE Switch is available in various models with different numbers and types of ports.
Power Adapter Contact your sales representative for the countries and areas supported.
  • GV-Fisheye Camera
  • Support Bracket x 3
  • Camera Cover (Hard Ceiling Mount)
  • Camera Cover (In-Ceiling Mount)
  • Screw (Hard Ceiling Mount) x 3
  • Screw (In-Ceiling Mount) x 3
  • Torx wrench
  • Plastic Screw Anchor x 3
  • Mini USB Extension Cable
  • IR LED Ring
  • PoE Converter set (Module, DC Power Y-Cable, RJ-45 Cable, PoE Screw x 3)
  • Installation Sticker
  • GV-IPCAM H.264 Software DVD
  • GV-Fisheye IP Dome Hardware Installation Guide
  • GV-NVR Software DVD
  • Warranty Card​

Note:
  • No Memory card slot & local storage function for Argentina.
  • The power adapter (DC 12V, 1.25A) can be excluded upon request.
  • Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  • For GV-Mount200 / 205, leave a distance of 1M or more between the camera body and the wall to ensure the image quality.
  • Specifications are subject to change without notice.

Setting up GV-Fisheye Cameras on GV-VMS (GV-Fisheye Camera Dewarping on GV-VMS)

GV-Fisheye Camera Dewarping on GV-Video Wall

GV-FE Series - Installation - Wall Mount

GV-FE Series -Installation - Wall Pendant Mount

GV-FE Series - Installation - In-Ceiling Mount

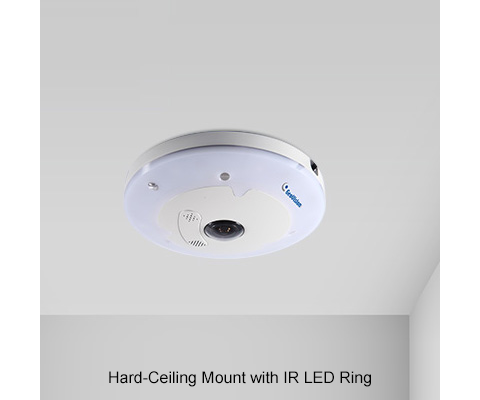

GV-FE Series - Installation - Hard-Ceiling Mount

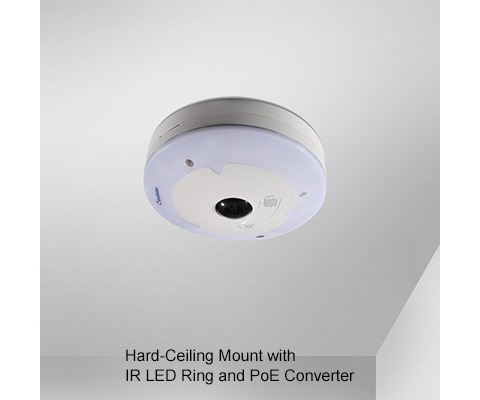

GV-FE Series - Installation - Hard Ceiling Mount with IR LED Ring (PoE Converter)
