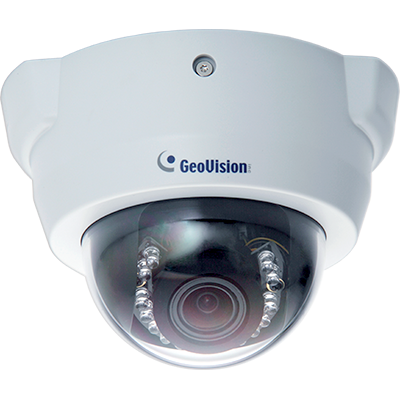

GV-FD3410

3MP H.264 3x zoom WDR Pro IR Fixed IP Dome

The GV‐FD3410 is an indoor camera designed with 3‐axis mechanism for easy and flexible installation. The camera allows the user to remotely adjust the zoom and focus through the Web interface with its motorized varifocal lens. Equipped with WDR Pro, the camera can process scenes with contrasting intensity of lights and produce clear image.

Models

ModelGV-FD3410
IrisP‐Iris
Focal Length(mm)3~9mm
Maximum ApertureF/1.2
Image Format1/2.7"
  • 1/3.2" progressive scan CMOS
  • Dual streams from H.264 and MJPEG
  • Up to 20 fps at 2048 × 1536
  • Motorized varifocal lens for remote focus / zoom adjustment
  • P-iris lens for auto iris control
  • Intelligent IR
  • Two-way audio
  • One sensor input and one alarm output
  • TV-out support
  • Built-in micro SD card slot (SD/SDHC) for local storage
  • Recording assigned by GV-Edge Recording Manager (Windows & Mac version)
  • DC 12V / AC 24V / PoE (IEEE 802.3af)
  • Wide Dynamic Range Pro (WDR Pro)
  • 2D noise reduction
  • Defog
  • Motion detection
  • Tampering alarm
  • Privacy mask
  • Day and Night function (with removable IR-cut filter)
  • IP address filtering
  • Supports iPhone, iPad, Android & 3GPP
  • 31 languages on Web interface
  • ONVIF (Profile S) conformant

Note:
  • No memory card slot & local storage function for Argentina.
  • The power adapter can be excluded upon request.
  • Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  • Specifications are subject to change without notice.


Note:
  • No memory card slot & local storage function for Argentina.
  • The power adapter can be excluded upon request.
  • Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  • Specifications are subject to change without notice.
Model No Name Details
GV-Mount100 Straight Tube and Junction Box Kit Dimensions: 200 x 170 x 257.5 mm (7.9 x 6.7 x 10.1")
Weight: 3.17 kg (6.99 lb)
GV-Mount101 Straight Tube Kit Dimensions: 219 x 125 x 332 mm (8.6 x 4.9 x 13.1")
Weight: 1.8 kg (3.97 lb)
GV-Mount200 Wall Pendant Tube Dimensions: 225 x 140 x 250 mm (8.9 x 5.5 x 9.8")
Weight: 900 g (1.98 lb)
GV-Mount203 Wall Pendant Tube and Junction Box Kit Dimensions: 315 x 195.5 x 225 mm (12.4 x 7.7 x 8.9")
Weight: 2.95 kg (6.5 lb)
GV-Mount205 Wall Mount Bracket Kit Dimensions: 126.5 x 203 x 160 mm / 5 x 8 x 6.3" (L x W x diameter)
Weight: 0.5 kg (1.1 lb)
Note: To ensure the image quality, leave a distance of 1M or more between the camera body and the wall.
GV-Mount300 Convex Corner Adapter Kit Dimensions: 238.6 x 409.5 mm (9.4 x 16.1")
Weight: 4.27 kg (9.41 lb)
GV-Mount310 Concave Corner Adapter Kit Dimensions: 123.3 x 393.1 mm (4.9 x 15.5")
Weight: 2.96 kg (6.53 lb)
GV-Mount400 Pole Mount Bracket Kit (Ø 4 ~ 6) Bracket: 241 x 161 mm (9.5 x 6.3")
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 4 ~ 6"
GV-Mount410 Pole Mount Bracket Kit (Ø 6 ~ 7.5") Bracket: 241 x 161 mm (9.5 x 6.3")
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 6 ~ 7.5"
GV-Mount702 Extension Tube Four options are available.
Dimensions: Ø 5.4 x 10 or 20 or 30 or 50 cm
(Ø 2.1 x 3.9 or 7.9 or 11.8 or 19.7")
Weight: 180 g or 390 g or 550 g or 800 g
(0.4 lb or 0.86 lb or 1.21lb or 1.76 lb)
GV-Mount900 Wall Mount Bracket Dimensions: 154 x 108 x 50 mm (6.1 x 4.3 x 2")
Weight: 240 g (0.53 lb)
GV-Mount902 GV-FD Series Dome Housing Dimensions: Ø 186 x 97.5 mm (Ø 7.3 x 3.8")
Weight: 600 g (1.32 lb)
GV-Mount909 Wall Mount Bracket Dimensions: 170 x 150 x 110 mm (6.7 x 5.9 x 4.3")
Weight: 0.61 kg (1.34 lb)
GV-Mount913 Power Box Mount Bracket Dimensions: Ø 146 x 7.5 mm (Ø 5.7 x 0.3")
Weight: 180 g (0.4 lb)
Smoked Cover Dimensions: ø 103.7 x 55 mm (4.08 x 2.16")
Weight: 30g (0.07 lbs)
Vandal Resistance: IK7
GV-PA191 PoE Adapter Power over Ethernet (PoE) Adapter The GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-Relay V2 The GV-Relay V2 is designed to expand the voltage load of GV IP devices. It provides 4 relay outputs, and each can be set as normally open (NO) or normally closed (NC) independently as per your requirement.
GV-POE Switch The GV-POE Switch is designed to provide power along with network connection for IP devices. The GV-POE Switch is available in various models with different numbers and types of ports.
Power Adapter Contact your sales representative for the countries and areas supported.
  • Fixed IP Dome
  • Torx Wrench
  • Mounting Plate
  • Short Screw Anchor x 3
  • Ceiling Screw x 3
  • Plate Screw x 3
  • TV-out Wire
  • Sticker
  • Power Adapter
  • GV-IPCAM H.264 Software DVD
  • GV-NVR Software DVD
  • Warranty Card​

Note:
  • No memory card slot & local storage function for Argentina.
  • The power adapter can be excluded upon request.
  • Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  • Specifications are subject to change without notice.
