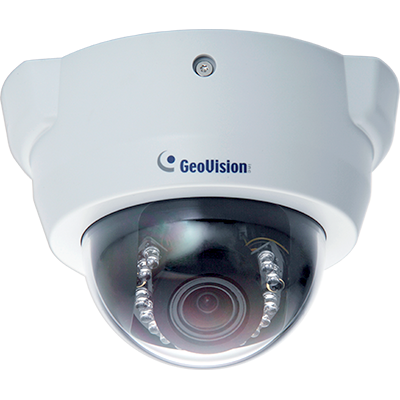

GV-FD1500

1.3MP H.264 Super Low Lux WDR IR Fixed IP Dome

The GV-FD1500 is an indoor camera designed with 3-axis mechanism for easy and flexible installation. The camera is equipped with a Super Low Lux CMOS image sensor with which the camera is capable of providing a color live view in near darkness. With optional accessories, the camera can be installed on various types of locations including wall surface, wall corner, pole and ceiling.

Models

ModelGV-FD1500
IrisP‐Iris
Focal Length(mm)3~9mm
Maximum ApertureF/1.2
Image Format1/2.7"
  • 1/3" progressive scan super low lux CMOS
  • Min. illumination at 0.01 lux
  • Dual streams from H.264 and MJPEG
  • Up to 30 fps at 1280 × 1024
  • 3-axis mechanism (pan / tilt / rotate)
  • Megapixel varifocal lens
  • P-iris lens for auto iris control
  • Intelligent IR
  • Two-way audio
  • One sensor input and one alarm output
  • TV-out support
  • Built-in micro SD card slot (SD/SDHC) for local storage
  • Recording assigned by GV-Edge Recording Manager (Windows & Mac version)
  • DC 12V / AC 24V / PoE (IEEE 802.3af)
  • Wide Dynamic Range (WDR)
  • 3D noise reduction
  • Defog
  • Motion detection
  • Tampering alarm
  • Privacy mask
  • Day and Night function (with removable IR-cut filter)
  • IP address filtering
  • Supports iPhone, iPad, Android & 3GPP
  • 31 languages on Web interface
  • ONVIF (Profile S) conformant

Note:
  • No memory card slot & local storage function for Argentina.
  • The power adapter can be excluded upon request.
  • Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  • Specifications are subject to change without notice.


Note:
  • No memory card slot & local storage function for Argentina.
  • The power adapter can be excluded upon request.
  • Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  • Specifications are subject to change without notice.
Model No Name Details
GV-Mount100 Straight Tube and Junction Box Kit Dimensions: 200 x 170 x 257.5 mm (7.9 x 6.7 x 10.1")
Weight: 3.17 kg (6.99 lb)
GV-Mount101 Straight Tube Kit Dimensions: 219 x 125 x 332 mm (8.6 x 4.9 x 13.1")
Weight: 1.8 kg (3.97 lb)
GV-Mount200 Wall Pendant Tube Dimensions: 225 x 140 x 250 mm (8.9 x 5.5 x 9.8")
Weight: 900 g (1.98 lb)
GV-Mount203 Wall Pendant Tube and Junction Box Kit Dimensions: 315 x 195.5 x 225 mm (12.4 x 7.7 x 8.9")
Weight: 2.95 kg (6.5 lb)
GV-Mount205 Wall Mount Bracket Kit Dimensions: 126.5 x 203 x 160 mm / 5 x 8 x 6.3" (L x W x diameter)
Weight: 0.5 kg (1.1 lb)
Note: To ensure the image quality, leave a distance of 1M or more between the camera body and the wall.
GV-Mount300 Convex Corner Adapter Kit Dimensions: 238.6 x 409.5 mm (9.4 x 16.1")
Weight: 4.27 kg (9.41 lb)
GV-Mount310 Concave Corner Adapter Kit Dimensions: 123.3 x 393.1 mm (4.9 x 15.5")
Weight: 2.96 kg (6.53 lb)
GV-Mount400 Pole Mount Bracket Kit (Ø 4 ~ 6) Bracket: 241 x 161 mm (9.5 x 6.3")
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 4 ~ 6"
GV-Mount410 Pole Mount Bracket Kit (Ø 6 ~ 7.5") Bracket: 241 x 161 mm (9.5 x 6.3")
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 6 ~ 7.5"
GV-Mount702 Extension Tube Four options are available.
Dimensions: Ø 5.4 x 10 or 20 or 30 or 50 cm
(Ø 2.1 x 3.9 or 7.9 or 11.8 or 19.7")
Weight: 180 g or 390 g or 550 g or 800 g
(0.4 lb or 0.86 lb or 1.21lb or 1.76 lb)
GV-Mount900 Wall Mount Bracket Dimensions: 154 x 108 x 50 mm (6.1 x 4.3 x 2")
Weight: 240 g (0.53 lb)
GV-Mount902 GV-FD Series Dome Housing Dimensions: Ø 186 x 97.5 mm (Ø 7.3 x 3.8")
Weight: 600 g (1.32 lb)
GV-Mount909 Wall Mount Bracket Dimensions: 170 x 150 x 110 mm (6.7 x 5.9 x 4.3")
Weight: 0.61 kg (1.34 lb)
GV-Mount913 Power Box Mount Bracket Dimensions: Ø 146 x 7.5 mm (Ø 5.7 x 0.3")
Weight: 180 g (0.4 lb)
Smoked Cover Dimensions: ø 103.7 x 55 mm (4.08 x 2.16")
Weight: 30g (0.07 lbs)
Vandal Resistance: IK7
GV-PA191 PoE Adapter Power over Ethernet (PoE) Adapter The GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-Relay V2 The GV-Relay V2 is designed to expand the voltage load of GV IP devices. It provides 4 relay outputs, and each can be set as normally open (NO) or normally closed (NC) independently as per your requirement.
GV-POE Switch The GV-POE Switch is designed to provide power along with network connection for IP devices. The GV-POE Switch is available in various models with different numbers and types of ports.
Power Adapter Contact your sales representative for the countries and areas supported.
  • Fixed IP Dome
  • Torx Wrench
  • Mounting Plate
  • Short Screw Anchor x 3
  • Ceiling Screw x 3
  • Plate Screw x 3
  • TV-out Wire
  • Sticker
  • Power Adapter
  • GV-IPCAM H.264 Software DVD
  • GV-NVR Software DVD
  • Warranty Card

Note:
  • No memory card slot & local storage function for Argentina.
  • The power adapter can be excluded upon request.
  • Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  • Specifications are subject to change without notice.
