GV-EV48 Elevator IP Control Panel

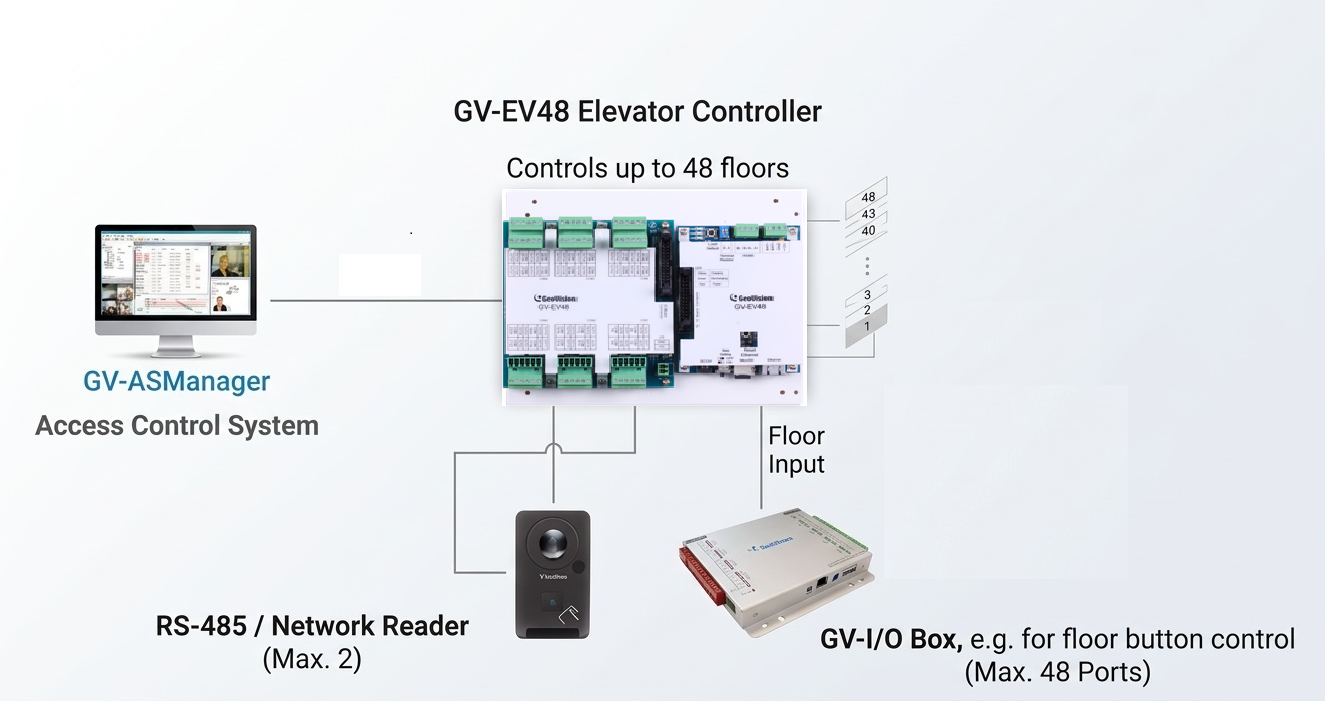

GV-EV48 is an elevator controller designed to control access of 1 elevator with a maximum of 48 floors. Up to 2 GV-Readers / GV-GF Fingerprint Readers can be connected to GV-EV48 using RS-485 connection and network connection. GV-EV48 can recognize identification cards and grant access to the authorized floors only.
  • Grant access to specific elevator floors using access cards, card's PIN code or fingerprint
  • GV-EV48 – 24 Floors: Built-in 24 relay outputs to support up to 24 elevator floors
  • GV-EV48 – 48 Floors: Built-in 48 relay outputs to support up to 48 elevator floors
  • Support up to 2 GV-Readers / GV-GF Fingerprint Readers through network connection and RS-485 connection

Note:
  • Specifications are subject to change without notice.


Note:
  • Specifications are subject to change without notice.
Model No Name Details
Cabinet (GV-AS Iron Box) With the cabinet (Dimension 383.5 x 443.5 x 112.2 mm / 15.1 x 17.5 x 4.4 in), GV-AS Controllers can be mounted directly to a wall or recessed into the wall.
GV-AS ID Card & GV-AS ID Key Fob For Card Mode, the GV-AS ID Card / Tag is required. 13.56 MHz cards and tags are available.
GV-WTR GV-WTR is a converter designed to support Wiegand interface to RS-485 interface, thereby enabling 3rd party readers to be connected to RS-485 GV-Controllers. Through the GV-WTR, Wiegand-interface readers can be easily combined to access control systems for improved versatility.
  • GV-EV48 – 24 Floors / 48 Floors
  • Power Adaptor 12V DC / 3A
  • Power Cord
  • Battery Cable
  • Screw x 8
  • Hex Nut x 8
  • Hex Pillar x 8
  • Micro SD Card 2 GB
  • Software CD
  • Warranty Card

Note:
  • Specifications are subject to change without notice.

Connecting GV-AS Controller to GV-Reader via TCP/IP


Note:
  • Specifications are subject to change without notice.
  • GV-EV48 – 24 Floors / 48 Floors
  • Power Adaptor 12V DC / 3A
  • Power Cord
  • Battery Cable
  • Screw x 8
  • Hex Nut x 8
  • Hex Pillar x 8
  • Micro SD Card 2 GB
  • Software CD
  • Warranty Card
