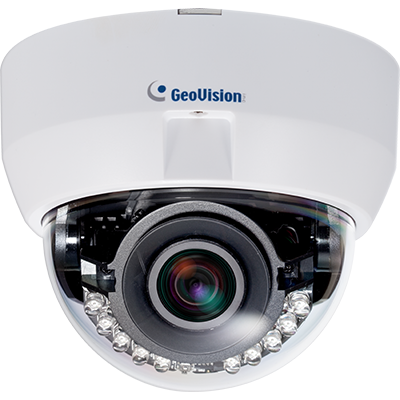

GV-EFD2101

2MP H.264 Super Low Lux WDR IR Fixed IP Dome

The Target Fixed Dome is an indoor, fixed network camera equipped with an automatic IR‐cut filter, Super Low Lux, IR LEDs for day and night surveillance. Adjustable in 3 axis (pan, tilt and rotate), it offers a surveillance solution with all the essential features and excellent image quality.

Models

ModelGV-EFD2101
IrisP-Iris
Focal Length (mm)3 ~ 9mm
Horizontal FOV102°~40°
Maximum ApertureF/1.7
Image Format1/2.8"
  • 1/2.8" progressive scan super low lux CMOS
  • Dual streams from H.264 and MJPEG
  • Up to 30 fps at 1920 × 1080
  • Intelligent IR
  • Day and Night function (with removable IR-cut filter)
  • Megapixel varifocal lens
  • P-iris lens for auto iris control
  • IR distance up to 50 m (164 ft)
  • 3-axis mechanism (pan / tilt / rotate)
  • DC 12V / PoE (IEEE 802.3af)
  • Two-way audio
  • Wide Dynamic Range (WDR)
  • 3D noise reduction
  • Defog
  • Motion detection
  • Tampering alarm
  • Text overlay
  • Privacy mask
  • IP address filtering
  • Recording assigned by GV-Edge Recording Manager (Windows & Mac version)
  • Supports iPhone, iPad, Android & 3GPP
  • 31 languages on Web interface
  • ONVIF (Profile S) conformant

Note:
  • Power adapters can be purchased upon request.


Note:
  • Power adapters can be purchased upon request.
Model No Name Details
GV-Mount100 Straight Tube and Junction Box Kit Dimensions: 200 x 170 x 257.5 mm (7.9 x 6.7 x 10.1")
Weight: 3.17 kg (6.99 lb)
GV-Mount101 Straight Tube Kit Dimensions: 219 x 125 x 332 mm (8.6 x 4.9 x 13.1")
Weight: 1.8 kg (3.97 lb)
GV-Mount200 Wall Pendant Tube Dimensions: 225 x 140 x 250 mm (8.9 x 5.5 x 9.8")
Weight: 900 g (1.98 lb)
GV-Mount203 Wall Pendant Tube and Junction Box Kit Dimensions: 315 x 195.5 x 225 mm (12.4 x 7.7 x 8.9")
Weight: 2.95 kg (6.5 lb)
GV-Mount300-1 Convex Corner Adapter Kit Dimensions: 238.6 x 395.2 x 210 mm (9.4 x 15.5 x 8.2")
Weight: 4.27 kg (9.41 lb)
GV-Mount310-1 Concave Corner Adapter Kit Dimensions: 111.2 x 369.9 x 210 mm  (4.37 x 14.5 x 8.2")
Weight: 2.96 kg (6.53 lb)
GV-Mount400-1 Pole Mount Bracket Kit (Ø 4 ~ 6") Bracket: 68.4 x 240 x 163 mm (2.69 x 9.44 x 6.41")
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 4 ~ 6"
GV-Mount410-1 Pole Mount Bracket Kit (Ø 6 ~ 7.5") Bracket: 68.4 x 240 x 163 mm (2.69 x 9.44 x 6.41")
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 6 ~ 7.5"
GV-Mount702 Extension Tube Four options are available.
Dimensions: Ø 5.4 x 10 or 20 or 30 or 50 cm
(Ø 2.1 x 3.9 or 7.9 or 11.8 or 19.7")
Weight: 180 g or 390 g or 550 g or 800 g
(0.4 lb or 0.86 lb or 1.21lb or 1.76 lb)
GV-Mount909 Wall Mount Bracket Dimensions: 170 x 150 x 110 mm (6.7 x 5.9 x 4.3")
Weight: 0.61 kg (1.34 lb)
GV-Mount910 Power Box Mount Bracket Dimensions: 112 x 98 x 7.5 mm (4.4 x 3.9 x 0.3")
Weight: 105 g (0.23 lb)
GV-Mount913 Power Box Mount Bracket Dimensions: Ø 146 x 7.5 mm (Ø 5.7 x 0.3")
Weight: 180 g (0.4 lb)
GV-Mount915 In-Ceiling Mounting Kit for GV-EFD2101 / 3101 / 5101 Dimensions: Ø 172.5 x 63.8 mm (Ø 7.04 x 2.5")
Weight: 424 g (0.93 lb)
GV-Mount917 GV-EFD2101 / 3101 / 5101 Dome Housing Dimensions: Ø 186 x 97.5 mm (Ø 7.3 x 3.8")
Weight: 948 g (2.09 lb)
GV-PA191 PoE Adapter Power over Ethernet (PoE) Adapter The GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-POE Switch The GV-POE Switch is designed to provide power along with network connection for IP devices.
The GV-POE Switch is available in various models with different numbers and types of ports.
Power Adapter Contact our sales representatives for the countries and areas supported.
  • Target Fixed Dome
  • Screw x 3
  • Screw Anchor x 3
  • Torx Wrench
  • TV-Out Wire
  • Installation Sticker
  • Download Guide
  • Warranty Card

Note:
  • Power adapters can be purchased upon request.

GV-EFD Series - Installation - In-Ceiling Mount


Note:
  • Power adapters can be purchased upon request.
  • Target Fixed Dome
  • Screw x 3
  • Screw Anchor x 3
  • Torx Wrench
  • TV-Out Wire
  • Installation Sticker
  • Download Guide
  • Warranty Card

Note:
  • Power adapters can be purchased upon request.
