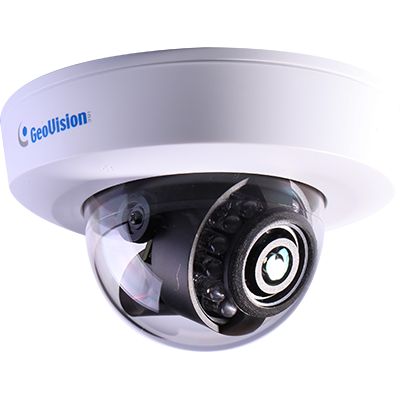

GV-EFD2100

2MP H.264 Low Lux WDR IR Mini Fixed IP Dome

The Target Mini Fixed Dome is an indoor, fixed, mini-sized network camera equipped with an automatic IR-cut filter and IR LEDs for day and night surveillance. Adjustable in 2 axis (pan and tilt), it offers an entry-level surveillance solution with all the essential features and excellent image quality.

Models

ModelGV-EFD2100-0FGV-EFD2100-2F
IrisFixedFixed
Focal Length(mm)2.8 mm3.8 mm
Maximum ApertureF/2.0F/1.8
Image Format1/2.7"1/2.7"
  • 1/2.8" progressive scan low lux CMOS
  • Dual streams from H.264 and MJPEG
  • Up to 25 fps at 1920 × 1080
  • Intelligent IR
  • Day and Night function (with removable IR-cut filter)
  • 2-axis mechanism (pan / tilt)
  • Built-in microphone
  • Wide Dynamic Range (WDR)
  • Defog
  • Motion detection
  • Tampering alarm
  • Text overlay
  • Privacy mask
  • IP address filtering
  • DC 12V / PoE
  • Megapixel lens
  • Recording assigned by GV-Edge Recording Manager (Windows & Mac version)
  • Supports iPhone, iPad, Android & 3GPP
  • 31 languages on Web interface
  • ONVIF (Profile S) conformant

Note:
  • Power adapters can be purchased upon request.
  • Specifications are subject to change without notice.


Note:
  • Power adapters can be purchased upon request.
  • Specifications are subject to change without notice.
Model No Name Details
GV-Mount900 Wall Mount Bracket Dimensions: 154 x 108 x 50 mm (6.1 x 4.3 x 2")
Weight: 240 g (0.53 lb)
GV-Mount909 Wall Mount Bracket Dimensions: 170 x 150 x 110 mm (6.7 x 5.9 x 4.3")
Weight: 0.61 kg (1.34 lb)
GV-Mount910 Power Box Mount Bracket Dimensions: 112 x 98 x 7.5 mm (4.4 x 3.9 x 0.3")
Weight: 105 g (0.23 lb)
GV-Mount913 Power Box Mount Bracket Dimensions: Ø 146 x 7.5 mm (Ø 5.7 x 0.3")
Weight: 180 g (0.4 lb)
GV-Mount918 Wall Mount Bracket for MFD/MDR/EFD/EDR Dimensions: Ø 145 x 117 x 96 mm (Ø 5.71 x4.60 x 3.78")
Weight: 350 g (0.77 lb)
GV-PA191 PoE Adapter Power over Ethernet (PoE) Adapter The GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-POE Switch The GV-POE Switch is designed to provide power along with network connection for IP devices. The GV-POE Switch is available in various models with different numbers and types of ports.
Power Adapter Contact your sales representative for the countries and areas supported.
  • Target Mini Fixed Dome
  • Screw x 2
  • Screw Anchor x 2
  • Focus Adjustment Ring
  • GV-IPCAM H.264 Software DVD
  • GV-NVR Software DVD
  • Warranty Card

Note:
  • Power adapters can be purchased upon request.
  • Specifications are subject to change without notice.

GV-EFD - Installation - L-Shaped Wall Mount

GV-EFD Series - Installation - Hard-Ceiling Mount

GV-EFD - Installation - Power Box Mount
