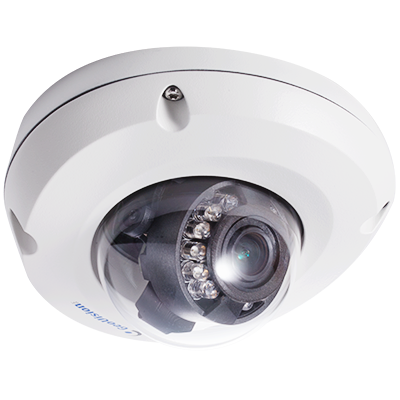

GV-EDR4700

4MP H.265 Super Low Lux WDR Pro IR Mini Fixed Rugged IP Dome

The Target Mini Fixed Rugged Dome is an outdoor, fixed, mini-sized network camera equipped with an automatic IR-cut filter and IR LEDs for day and night surveillance. The camera adheres to IK10 and IP67 standards. It is adjustable in 2 axis (pan and tilt) and can be connected through PoE. The camera can support H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. GV-EDR4700 is capable of not only providing a color live view in near darkness but also under contrasting light intensities with its super low lux CMOS image sensor and WDR Pro.

Models

ModelGV-EDR4700-0FGV-EDR4700-2F
IrisFixedFixed
Focal Length(mm)2.8 mm3.8 mm
Maximum ApertureF/2.0F/1.8
Image Format1/2.7"1/2.7"
  • 1/3" progressive scan super low lux CMOS
  • Dual streams from H.265, H.264, and MJPEG
  • Up to 20 fps at 2592 x 1520, 25 fps at 2560 x 1440, 30 fps at 2048 x 1520
  • Day and Night function (with removable IR-cut filter)
  • Vandal resistance (IK10 for metal casing)
  • Ingress protection (IP67)
  • 2-axis mechanism (pan / tilt)
  • DC 12V / PoE (IEEE 802.3af)
  • Wide Dynamic Range Pro (WDR Pro)
  • Intelligent IR
  • 3D noise reduction
  • Smart streaming
  • Defog
  • Motion detection
  • Tampering alarm
  • Text overlay
  • Privacy mask
  • IP address filtering
  • Recording assigned by GV-Edge Recording Manager (Windows & Mac version)
  • Supports iPhone, iPad, Android & 3GPP
  • 31 languages on Web interface
  • ONVIF (Profile S) conformant



Model No Name Details
GV-Mount900 Wall Mount Bracket Dimensions: 154 x 108 x 50 mm (6.1 x 4.3 x 2")
Weight: 240 g (0.53 lb)
GV-Mount910 Power Box Mount Bracket Dimensions: 112 x 98 x 7.5 mm (4.4 x 3.9 x 0.3")
Weight: 105 g (0.23 lb)
GV-Mount913 Power Box Mount Bracket Dimensions: Ø 146 x 7.5 mm (Ø 5.7 x 0.3")
Weight: 180 g (0.4 lb)
GV-Mount918 Wall Mount Bracket for MFD/MDR/EFD/EDR Dimensions: Ø 145 x 117 x 96 mm (Ø 5.71 x4.60 x 3.78")
Weight: 350 g (0.77 lb)
GV-PA191 PoE Adapter Power over Ethernet (PoE) Adapter The GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
Plastic PG21 Conduit Connector The plastic PG21 conduit connector is used for running the wires of the camera through a 1/2" conduit pipe.
GV-POE Switch The GV-POE Switch is designed to provide power along with network connection for IP devices. The GV-POE Switch is available in various models with different numbers and types of ports.
Power Adapter Contact your sales representative for the countries and areas supported.
  • H.265 Mini Fixed Rugged Dome
  • Screw x 2
  • Screw Anchor x 2
  • Focus Adjustment Ring
  • Installation Sticker
  • Conduit Converter
  • RJ-45 Connector
  • Waterproof rubber sets (for RJ-45 Cat.5 and 12V DC / for RJ-45 Cat.6)
  • Torx Wrench
  • Silica Gel Bag x 2
  • Adhesive Tape for Silica Gel Bag x 2
  • Concave hexagon Wrench
  • Ruler
  • Screw for Conduit Converter x 2
  • GV-IPCAM Software DVD
  • GV-Software DVD
  • Warranty Card
