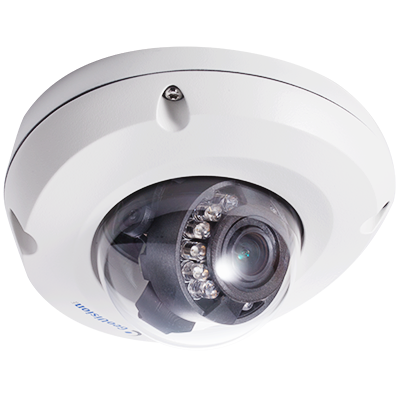

GV-EDR2700

2MP H.265 Super Low Lux WDR Pro IR Mini Fixed Rugged IP Dome

The Target Mini Fixed Rugged Dome is an outdoor, fixed, mini-sized network camera equipped with an automatic IR-cut filter and IR LEDs for day and night surveillance. The camera adheres to IK10 and IP67 standards. The camera comes with a built-in micro SD card slot for local storage. It is adjustable in 2 axes (pan and tilt) and can be connected through PoE. The camera can support H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. The camera is capable of providing a color live view not only in near darkness, but also under contrasting light intensities with its super low lux CMOS image sensor and WDR Pro.

Models

ModelGV-EDR2700-0FGV-EDR2700-2F
IrisFixedFixed
Focal Length(mm)2.8 mm3.8 mm
Maximum ApertureF/2.0F/1.8
Image Format1/2.7"1/2.7"
  • 1/2.8" progressive scan super low lux CMOS
  • Min. illumination at 0.004 lux
  • Dual streams from H.265, H.264, and MJPEG
  • Up to 30 fps at 1920 × 1080
  • Day and Night function (with removable IR-cut filter)
  • Vandal resistance (IK10 for metal casing)
  • Ingress protection (IP67)
  • 2-axis mechanism (pan / tilt)
  • Built-in micro SD card slot (SD/SDHC/UHS‐I, Class 10) for local storage
  • DC 12V / PoE (IEEE 802.3af)
  • Wide Dynamic Range Pro (WDR Pro)
  • Intelligent IR
  • 3D noise reduction
  • Smart streaming
  • Defog
  • Motion detection
  • Tampering alarm
  • Text overlay
  • Privacy mask
  • IP address filtering
  • Recording assigned by GV-Edge Recording Manager (Windows & Mac version)
  • Supports iPhone, iPad, Android & 3GPP
  • 31 languages on Web interface
  • ONVIF (Profile S) conformant

Note:
  • Smart streaming requires either GV-DVR / NVR V8.7.0.0 or GV-VMS V16.10.3.
  • No memory card slot & local storage function for Argentina.
  • It is required to apply patch files to all the supported software mentioned above.
  • The signal range and data throughput may vary depending on the network conditions and environmental factors.
  • Specifications are subject to change without prior notice.


Note:
  • Smart streaming requires either GV-DVR / NVR V8.7.0.0 or GV-VMS V16.10.3.
  • No memory card slot & local storage function for Argentina.
  • It is required to apply patch files to all the supported software mentioned above.
  • The signal range and data throughput may vary depending on the network conditions and environmental factors.
  • Specifications are subject to change without prior notice.
Model No Name Details
GV-Mount910 Power Box Mount Bracket Dimensions: 112 x 98 x 7.5 mm (4.4 x 3.9 x 0.3")
Weight: 105 g (0.23 lb)
GV-Mount913 Power Box Mount Bracket Dimensions: Ø 146 x 7.5 mm (Ø 5.7 x 0.3")
Weight: 180 g (0.4 lb)
GV-Mount918 Wall Mount Bracket for MFD/MDR/EFD/EDR Dimensions: Ø 145 x 117 x 96 mm (Ø 5.71 x4.60 x 3.78")
Weight: 350 g (0.77 lb)
GV‐PA191 PoE Adapter Dimensions (H x W x D): 43 x 69 x 40 mm (1.69 x 2.72 x 1.57")
Weight: 130 g (0.29 lb)
Plastic PG21 Conduit Connector The plastic PG21 conduit connector is used for running the wires of the camera through a 1/2" conduit pipe.
Power Adapter Contact our sales representatives for the countries and areas supported.
GV-POE Switch The GV-POE Switch is designed to provide power along with network connection for IP devices. The GV-POE Switch is available in various models with different numbers and types of ports.
  • H.265 Mini Fixed Rugged Dome
  • Screw x 2
  • Screw Anchor x 2
  • Focus Adjustment Ring
  • Installation Sticker
  • Conduit Converter
  • RJ-45 Connector
  • Waterproof Rubber Sets (for RJ-45 Cat.5 and 12V DC / for RJ-45 Cat.6)
  • Torx Wrench
  • Silica Gel Bag x 2
  • Adhesive Tape for Silica Gel Bag x 2
  • Concave Hexagon Wrench
  • Ruler
  • Screw for Conduit Converter x 2
  • Download Guide
  • Warranty Card

Note:
  • Smart streaming requires either GV-DVR / NVR V8.7.0.0 or GV-VMS V16.10.3.
  • No memory card slot & local storage function for Argentina.
  • It is required to apply patch files to all the supported software mentioned above.
  • The signal range and data throughput may vary depending on the network conditions and environmental factors.
  • Specifications are subject to change without prior notice.

GV-EDR - Installation - Hard-Ceiling Mount

GV-EDR - Installation - Power Box Mount


Note:
  • Smart streaming requires either GV-DVR / NVR V8.7.0.0 or GV-VMS V16.10.3.
  • No memory card slot & local storage function for Argentina.
  • It is required to apply patch files to all the supported software mentioned above.
  • The signal range and data throughput may vary depending on the network conditions and environmental factors.
  • Specifications are subject to change without prior notice.
  • H.265 Mini Fixed Rugged Dome
  • Screw x 2
  • Screw Anchor x 2
  • Focus Adjustment Ring
  • Installation Sticker
  • Conduit Converter
  • RJ-45 Connector
  • Waterproof Rubber Sets (for RJ-45 Cat.5 and 12V DC / for RJ-45 Cat.6)
  • Torx Wrench
  • Silica Gel Bag x 2
  • Adhesive Tape for Silica Gel Bag x 2
  • Concave Hexagon Wrench
  • Ruler
  • Screw for Conduit Converter x 2
  • Download Guide
  • Warranty Card

Note:
  • Smart streaming requires either GV-DVR / NVR V8.7.0.0 or GV-VMS V16.10.3.
  • No memory card slot & local storage function for Argentina.
  • It is required to apply patch files to all the supported software mentioned above.
  • The signal range and data throughput may vary depending on the network conditions and environmental factors.
  • Specifications are subject to change without prior notice.
