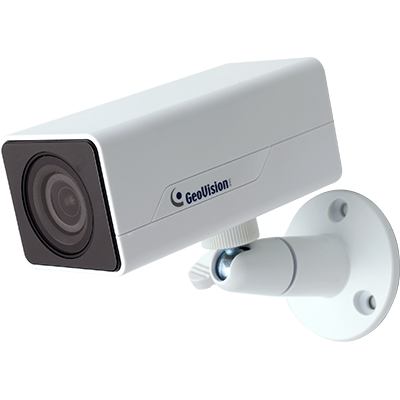

GV-EBX1100

1.3MP H.264 Low Lux WDR IR Box IP Camera

The Target Box Camera is a series of light‐weighted cameras designed for indoor usage. Equipped with IR‐cut filter and built‐in IR LEDs, the camera is an entry-level surveillance solution with all the essential features and excellent image quality. The camera supports PoE and can be installed intuitively.

Models

ModelGV-EBX1100-0FGV-EBX1100-2F
IrisFixedFixed
Focal Length(mm)2.8 mm3.8 mm
Maximum ApertureF/2.0F/1.8
Image Format1/2.7"1/2.7
  • 1/3" progressive scan low lux CMOS
  • Dual streams from H.264 and MJPEG
  • Up to 30 fps at 1280 × 1024
  • Intelligent IR
  • Day and Night function (with removable IR-cut filter)
  • Built-in microphone
  • Wide Dynamic Range (WDR)
  • Defog
  • Motion detection
  • Tampering alarm
  • Text overlay
  • Privacy mask
  • IP address filtering
  • DC 12V / PoE
  • Megapixel lens
  • Recording assigned by GV-Edge Recording Manager (Windows & Mac version)
  • Supports iPhone, iPad, Android & 3GPP
  • 31 languages on Web interface
  • ONVIF (Profile S) conformant

Note:
  • Power adapters can be purchased upon request.
  • The signal range and data throughput may vary depending on the network conditions and environmental factors.
  • Specifications are subject to change without notice.


Note:
  • Power adapters can be purchased upon request.
  • The signal range and data throughput may vary depending on the network conditions and environmental factors.
  • Specifications are subject to change without notice.
Model No Name Details
GV-PA191 PoE Adapter Power over Ethernet (PoE) Adapter The GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-POE Switch The GV-POE Switch is designed to provide power along with network connection for IP devices. The GV-POE Switch is available in various models with different numbers and types of ports.
Power Adapter Contact your sales representative for the countries and areas supported.
  • Target Box Camera
  • Supporting rack
  • Screw x 3
  • Screw anchor x 3
  • GV-IPCAM H.264 Software DVD
  • GV-NVR Software DVD
  • Warranty Card
