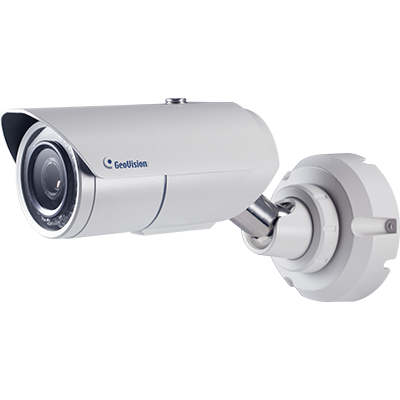

GV-EBL5101

5MP H.264 Low Lux WDR IR Bullet IP Camera

The Target Bullet Camera is a light-weighted cameras designed for outdoor environments. It adheres to the IP67 standard and has full protection against dust and jets of water. The camera also allows automatic and precise control of exposure using its P-iris, producing images with better clarity and contrast. The camera offers an entry-level surveillance solution with all the essential features and excellent image quality.

Models

ModelGV-EBL5101
IrisP-Iris
Focal Length(mm)2.8 ~ 12mm
Maximum ApertureF/1.7
Image Format1/2.7"
  • 1/3.2" progressive scan low lux CMOS
  • Dual streams from H.264 and MJPEG
  • Up to 30 fps at 2592 × 1944
  • Intelligent IR
  • Day and Night function (with removable IR-cut filter)
  • Megapixel lens
  • P-iris lens for auto iris control
  • Vandal resistance (IK10 for metal casing)
  • Ingress protection (IP67)
  • DC 12V / PoE (IEEE 802.3af)
  • Wide Dynamic Range (WDR)
  • 3D noise reduction
  • Defog
  • Motion detection
  • Tampering alarm
  • Text overlay
  • Privacy mask
  • IP address filtering
  • Recording assigned by GV-Edge Recording Manager (Windows & Mac version)
  • Supports iPhone, iPad, Android & 3GPP
  • 31 languages on Web interface
  • ONVIF (Profile S) conformant

Note:
  • It's required to apply patch files to all the supported software mentioned above.
  • The signal range and data throughput may vary depending on the network conditions and environmental factors.
  • When the resolution is set at 2592 x 1944:
    • If the camera is switched to single stream (while stream 2 is deselected) and Noise Reduction is disabled, the frame rate can reach up to 30 FPS.
    • If the camera is switched to dual streams and Noise Reduction is disabled, the frame rate can reach up to 25 FPS.
    • As long as Noise Reduction is enabled, whether the camera is switched to single stream of dual streams, the frame rate will be 15 FPS.
  • Specifications are subject to change without notice.


Note:
  • It's required to apply patch files to all the supported software mentioned above.
  • The signal range and data throughput may vary depending on the network conditions and environmental factors.
  • When the resolution is set at 2592 x 1944:
    • If the camera is switched to single stream (while stream 2 is deselected) and Noise Reduction is disabled, the frame rate can reach up to 30 FPS.
    • If the camera is switched to dual streams and Noise Reduction is disabled, the frame rate can reach up to 25 FPS.
    • As long as Noise Reduction is enabled, whether the camera is switched to single stream of dual streams, the frame rate will be 15 FPS.
  • Specifications are subject to change without notice.
Model No Name Details
GV-Mount300 Convex Corner Adapter Kit Dimensions: 238.6 x 409.5 mm (9.4 x 16.1")
Weight: 4.27 kg (9.41 lb)
GV-Mount310 Concave Corner Adapter Kit Dimensions: 123.3 x 393.1 mm (4.9 x 15.5")
Weight: 2.96 kg (6.53 lb)
GV-Mount400 Pole Mount Bracket Kit (Ø 4 ~ 6) Bracket: 241 x 161 mm (9.5 x 6.3")
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 4 ~ 6"
GV-Mount410 Pole Mount Bracket Kit (Ø 6 ~ 7.5") Bracket: 241 x 161 mm (9.5 x 6.3")
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 6 ~ 7.5"
GV-PA191 PoE Adapter Power over Ethernet (PoE) Adapter The GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-POE Switch The GV-POE Switch is designed to provide power along with network connection for IP devices. The GV-POE Switch is available in various models with different numbers and types of ports.
Power Adapter Contact your sales representative for the countries and areas supported.
  • Target Bullet Camera
  • Sun-shield Cover
  • Screw for Sun-shield Cover x 2
  • Screw for Supporting Rack x 3
  • Screw Anchor x 3
  • Silica Gel Bag x 2
  • Washer x 2
  • Terminal Block
  • Screw for Mounting Kit x 3
  • Nut for Mounting Kit x 3
  • Hex Key
  • Download Guide
  • Warranty Card
