GV-EBL2100

2MP H.264 Low Lux WDR IR Bullet IP Camera

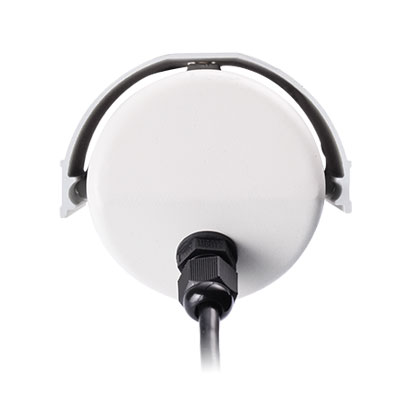

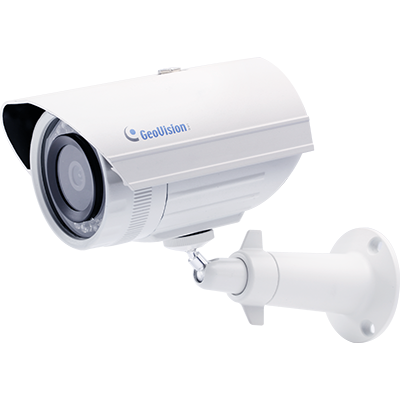

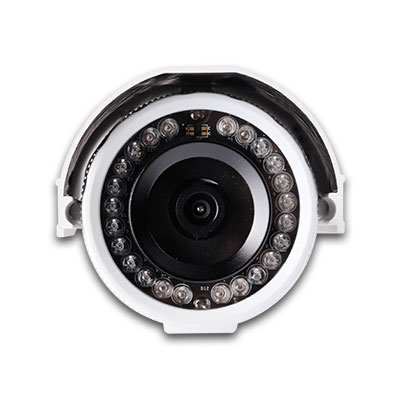

The Target Bullet Camera is a light-weighted cameras designed for outdoor environments. It adheres to the IP67 standard and has full protection against dust and jets of water. The camera also allows automatic and precise control of exposure using its P-iris, producing images with better clarity and contrast. The camera offers an entry-level surveillance solution with all the essential features and excellent image quality.

Models

ModelGV-EBL2100-1FGV-EBL2100-2F
IrisFixedFixed
Focal Length(mm)6 mm3.8 mm
Maximum ApertureF/1.8F/1.8
Image Format1/2.7"1/2.7"
  • 1/2.8" progressive scan low lux CMOS
  • Dual streams from H.264 and MJPEG
  • Up to 25 fps at 1920 × 1080
  • Intelligent IR
  • Day and Night function (with removable IR-cut filter)
  • Wide Dynamic Range (WDR)
  • Defog
  • Vandal resistance (IK10 for metal casing)
  • Ingress protection (IP67)
  • Motion detection
  • Tampering alarm
  • Text overlay
  • Privacy mask
  • IP address filtering
  • DC 12V / PoE (IEEE 802.3af)
  • Megapixel lens
  • Recording assigned by GV-Edge Recording Manager (Windows & Mac version)
  • Supports iPhone, iPad, Android & 3GPP
  • 31 languages on Web interface
  • ONVIF (Profile S) conformant

Note:
  • Power adapters can be purchased upon request.
  • The signal range and data throughput may vary depending on the network conditions and environmental factors.
  • Specifications are subject to change without notice.


Note:
  • Power adapters can be purchased upon request.
  • The signal range and data throughput may vary depending on the network conditions and environmental factors.
  • Specifications are subject to change without notice.
Model No Name Details
GV-PA191 PoE Adapter Power over Ethernet (PoE) Adapter The GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-POE Switch The GV-POE Switch is designed to provide power along with network connection for IP devices. The GV-POE Switch is available in various models with different numbers and types of ports.
Power Adapter Contact your sales representative for the countries and areas supported.
  • Target Bullet Camera
  • Sun-Shield Cover
  • Silica Gel Tape x 2
  • Supporting rack
  • Screw for supporting rack x 3
  • Screw anchor x 3
  • Screw for sun-shield cover
  • Washer
  • Terminal Block
  • GV-IPCAM H.264 Software DVD
  • GV-NVR Software DVD
  • Warranty Card

Note:
  • Power adapters can be purchased upon request.
  • The signal range and data throughput may vary depending on the network conditions and environmental factors.
  • Specifications are subject to change without notice.

Introduction to EBL2100 Series
