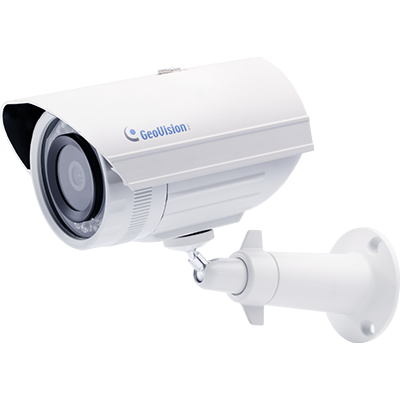

GV-EBL1100

1.3MP H.264 Low Lux WDR IR Bullet IP Camera

The Target Bullet Camera is a light-weighted cameras designed for outdoor environments. It adheres to the IP67 standard and has full protection against dust and jets of water. The camera offers an entry-level surveillance solution with all the essential features and excellent image quality.

Models

ModelGV-EBL1100-1FGV-EBL1100-2F
IrisFixedFixed
Focal Length(mm)6 mm3.8 mm
Maximum ApertureF/1.8F/1.8
Image Format1/2.7"1/2.7"
  • 1/3" progressive scan low lux CMOS
  • Dual streams from H.264 and MJPEG
  • Up to 30 fps at 1280 × 1024
  • Intelligent IR
  • Day and Night function (with removable IR-cut filter)
  • Wide Dynamic Range (WDR)
  • Defog
  • Vandal resistance (IK10 for metal casing)
  • Ingress protection (IP67)
  • Motion detection
  • Tampering alarm
  • Text overlay
  • Privacy mask
  • IP address filtering
  • DC 12V / PoE (IEEE 802.3af)
  • Megapixel lens
  • Recording assigned by GV-Edge Recording Manager (Windows & Mac version)
  • Supports iPhone, iPad, Android & 3GPP
  • 31 languages on Web interface
  • ONVIF (Profile S) conformant

Note:
  • Power adapters can be purchased upon request.
  • The signal range and data throughput may vary depending on the network conditions and environmental factors.
  • Specifications are subject to change without notice.


Note:
  • Power adapters can be purchased upon request.
  • The signal range and data throughput may vary depending on the network conditions and environmental factors.
  • Specifications are subject to change without notice.
Model No Name Details
GV-PA191 PoE Adapter Power over Ethernet (PoE) Adapter The GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-POE Switch The GV-POE Switch is designed to provide power along with network connection for IP devices. The GV-POE Switch is available in various models with different numbers and types of ports.
Power Adapter Contact your sales representative for the countries and areas supported.
  • Target Bullet Camera
  • Sun-Shield Cover
  • Silica Gel Tape x 2
  • Supporting rack
  • Screw for supporting rack x 3
  • Screw anchor x 3
  • Screw for sun-shield cover
  • Washer
  • Terminal Block
  • GV-IPCAM H.264 Software DVD
  • GV-NVR Software DVD
  • Warranty Card
