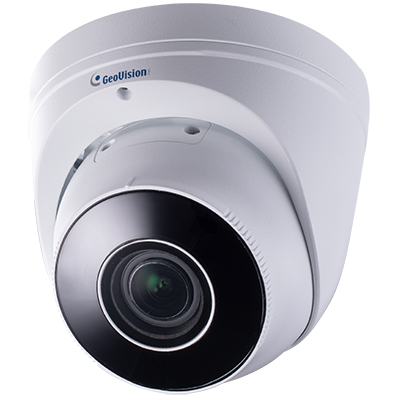

GV-EBD4711

4MP H.265 4.4x Zoom Low Lux WDR Pro IR Eyeball IP Dome

The H.265 Target Eyeball Dome is an outdoor, network camera equipped with an automatic IR-cut filter and 2 IR LEDs for day and night surveillance. With its motorized lens, the user can zoom and focus the camera from the Web interface. The camera adheres to IP67 standards. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. With its WDR Pro, it can process scenes with contrasting intensity of lights and produce clear image.

Models

ModelGV-EBD4711
IrisFixed
Focal Length (mm)2.7~12mm
Horizontal FOV91.0°~27.0°
Maximum ApertureF/1.4
Image Format1/3"
  • 1/3" progressive scan low lux CMOS sensor
  • Min. illumination at 0.03 lux (B/W) and 0.05 lux (color)
  • Triple streams from H.265, H.264 or MJPEG
  • Up to 20 fps at 2592 x 1520, 25 fps at 2560 x 1440, 30 fps at 2048 x 1520
  • Motorized varifocal lens for remote focus / zoom adjustment
  • Intelligent IR
  • IR distance up to 30 m (98.4 ft)
  • Built-in microphone
  • Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I) for local storage
  • Ingress protection (IP67)
  • Day and Night function (with removable IR-cut filter)
  • DC 12V / PoE (IEEE 802.3af)
  • Wide Dynamic Range Pro (WDR Pro)
  • Defog
  • 3D noise reduction
  • Motion detection
  • Tampering alarm
  • Text overlay
  • Privacy mask

Note:
  • It is required to apply patch files to all the supported software.
  • Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  • Specifications are subject to change without notice.


Note:
  • It is required to apply patch files to all the supported software.
  • Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  • Specifications are subject to change without notice.
Model No Name Details
GV-Mount211 Wall Mount Bracket Dimensions: 233 x 126 x 126 mm / (9.2 x 5 x 5")
Weight: 0.92 kg (2.0 lb)
GV-Mount212 Wall Box Mount Dimensions: Φ126 x 36 mm (5.0" x 1.4")
Weight: 0.18 kg (0.4 lb)
GV-PA191 PoE Adapter Power over Ethernet (PoE) Adapter The GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-POE Switch The GV-POE Switch is designed to provide power along with network connection for IP devices. The GV-POE Switch is available in various models with different numbers and types of ports.
Power Adapter Contact our sales representatives for the countries and areas supported.
  • H.265 Target Eyeball Dome
  • Waterproof Rubber Set
  • Screw x 3
  • Screw Anchor x 3
  • Drill Template Paster
  • Download Guide
  • Warranty Card
