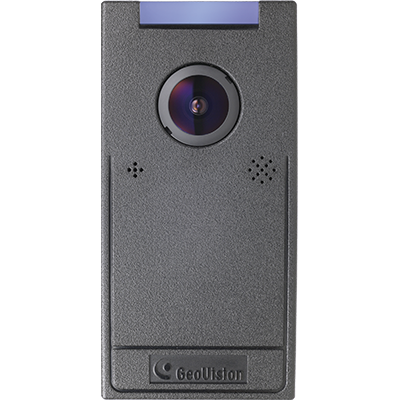

GV-CR420

4MP H.264 IP Camera Reader

All-in-One Solution
GV-CR420 is a card reader with a built-in 4 MP wide angle IP camera. The card reader recognizes identification cards and grants access accordingly. The wide angle camera captures all angles of the entrance and transmits live view to GV-ASManager and GV-System through network connection. The all-in-one solution eliminates the need of installing and maintaining a separate camera in addition to the card reader.

Card and Face Mode
In addition to granting access after a card is presented, the integration of card reader and wide angle camera allows you to enable the Card and Face Mode, where the camera reader needs to be able to both recognize the card and detect a face before access is granted.

Web Interface
Using a browser, you can watch live view and utilize functions such as motion detection, privacy mask and alert notifications through the Web interface.
  • Wide angle IP camera with 4 MP progressive scan CMOS
  • Stream 1 from H.264 and MJPEG; Stream 2 from H.264 and MJPEG
  • Up to 15 fps at 2048 x 1944
  • Built-in Web server for monitoring through Internet Explorer web browser
  • Built-in microphone and speaker
  • Wide Dynamic Range (WDR)
  • Defog
  • Privacy mask to cover parts of the image that should not be viewable
  • Tampering alarm
  • Text overlay
  • 28 languages on web interface
  • ONVIF conformant
  • GV-AS Controller connection through Wiegand interface, RS-485 interface and network
  • 13.56 MHz for ISO14443A (MIFARE DESFire, MIFARE Plus and MIFARE Classic)
  • Support for GV-Proximity Cards with GID (Geovision Identifier) to enhance security
  • Access by card plus face detection
  • Enabling different access control modes according to the Authentication Schedule: Card only mode (default), Card and Face Mode
  • Receiving live view and capturing snapshots when card is presented

Note:
  • To support face detection function, avoid placing the camera reader where the light source is directly behind the subject.
  • RS485 and TCP/IP interfaces only support GeoVision controllers, while Wiegand interface supports both GeoVision and 3rd party controllers (Wiegand 26 Bits).
  • Specifications are subject to change without notice.


Note:
  • To support face detection function, avoid placing the camera reader where the light source is directly behind the subject.
  • RS485 and TCP/IP interfaces only support GeoVision controllers, while Wiegand interface supports both GeoVision and 3rd party controllers (Wiegand 26 Bits).
  • Specifications are subject to change without notice.
Model No Name Details
GV-AS ID Card & GV-AS ID Key Fob For Card Mode, the GV-AS ID Card / Tag is required. 13.56 MHz cards and tags are available.
  • GV-CR420 x 1
  • Mounting Plate x 1
  • Standard Screw x 2
  • Plastic Screw Anchor x 2
  • Security Screw x 1
  • Torx Wrench x 1
  • DC 12V Power Adapter x 1
  • Software CD x 1
  • Quick Start Guide x 1
  • Warranty Card x 1

Note:
  • To support face detection function, avoid placing the camera reader where the light source is directly behind the subject.
  • RS485 and TCP/IP interfaces only support GeoVision controllers, while Wiegand interface supports both GeoVision and 3rd party controllers (Wiegand 26 Bits).
  • Specifications are subject to change without notice.
