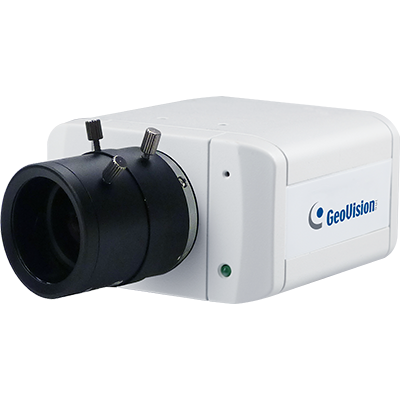

GV-BX5300

5MP H.264 WDR D/N Box IP Camera

Models

ModelGV-BX5300-6VGV-BX5300-8F
IrisP-IrisFixed
Focal Length(mm)3.3~10.5mm2.8mm
Maximum ApertureF/1.6F/1.8
Image Format1/2"1/2.5"
  • 5MP progressive scan CMOS
  • Dual streams from H.264 and MJPEG
  • Up to 10 fps at 2560 × 1920
  • P-iris lens for auto iris control
  • Built-in / external microphone
  • Two-way audio
  • One sensor input and one alarm output
  • TV-out support
  • Built-in micro SD card slot (SD/SDHC) for local storage
  • Recording assigned by GV-Edge Recording Manager (Windows & Mac version)
  • Mini USB slot for WiFi Adapter or USB hard drive
  • Wide Dynamic Range (WDR)
  • 2D noise reduction
  • Defog
  • Motion detection
  • Tampering alarm
  • Privacy mask
  • IP address filtering
  • DC 12V / PoE (IEEE 802.3af)
  • Day and Night function (with removable IR-cut filter)
  • Megapixel varifocal lens
  • Supports iPhone, iPad, Android & 3GPP
  • 31 languages on Web interface
  • ONVIF (Profile S) conformant

Note:
  • No memory card slot & local storage function for Argentina.
  • The power adapter can be excluded upon request.
  • The signal range and data throughput may vary depending on the network conditions and environmental factors.
  • With the standard installation, the supporting rack is not included in the packing list.
  • GV-Housing103 only works with GV-Mount300-1, GV-Mount310-1, GV-Mount400-1 and GV-Mount410-1.
  • Specifications are subject to change without notice.


Note:
  • No memory card slot & local storage function for Argentina.
  • The power adapter can be excluded upon request.
  • The signal range and data throughput may vary depending on the network conditions and environmental factors.
  • With the standard installation, the supporting rack is not included in the packing list.
  • GV-Housing103 only works with GV-Mount300-1, GV-Mount310-1, GV-Mount400-1 and GV-Mount410-1.
  • Specifications are subject to change without notice.
Model No Name Details
GV-Mount300 Convex Corner Adapter Kit Dimensions: 238.6 x 409.5 mm (9.4 x 16.1")
Weight: 4.27 kg (9.41 lb)
GV-Mount310 Concave Corner Adapter Kit Dimensions: 123.3 x 393.1 mm (4.9 x 15.5")
Weight: 2.96 kg (6.53 lb)
GV-Mount400 Pole Mount Bracket Kit (Ø 4 ~ 6) Bracket: 241 x 161 mm (9.5 x 6.3")
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 4 ~ 6"
GV-Mount410 Pole Mount Bracket Kit (Ø 6 ~ 7.5") Bracket: 241 x 161 mm (9.5 x 6.3")
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 6 ~ 7.5"
GV-Housing101 Housing Box (with heater and fan) Dimensions: 406 x 145 x 109 mm (16 x 5.7 x 4.3")
Weight: 4.69 kg (10.34 lb) (including Supporting Tube)
Start-up Temperature: -30°C ~ 50°C (-22°F ~ 122°F)
Operation Temperature: ‐40°C ~ 50°C (-40°F ~ 122°F)
Heater: 15°C (59°F) On / 25°C (77°F) Off
Fan: 35°C (95°F) On / 25°C (77°F) Off
Power board: 24V AC / 12V DC input<
GV-PA191 PoE Adapter Power over Ethernet (PoE) Adapter The GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-Relay V2 The GV-Relay V2 is designed to expand the voltage load of GV IP devices. It provides 4 relay outputs, and each can be set as normally open (NO) or normally closed (NC) independently as per your requirement.
GV-POE Switch The GV-POE Switch is designed to provide power along with network connection for IP devices. The GV-POE Switch is available in various models with different numbers and types of ports.
Power Adapter Contact your sales representative for the countries and areas supported.
  • Box Camera
  • Terminal Block
  • Fixed Focal or Varifocal Megapixel Lens
  • Six Lens Rings
  • Video Out Wire
  • Camera Holder
  • Holder Screw x 2
  • Power Adapter
  • GV-IPCAM H.264 Software DVD
  • GV-NVR Software DVD
  • Warranty Card
