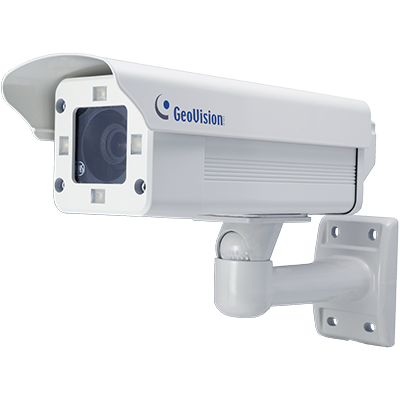

GV-BX4700-E

4MP H.265 Super Low Lux WDR Pro IR Arctic Box IP Camera

The GV-BX4700-E is an outdoor cameras designed for environments of extreme temperatures. The camera adheres to IP67 and IK10 protection standards, and is equipped with IR LEDs and a removable IR-cut filter for day and night surveillance. GV-BX4700-E supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. The camera is capable of processing scenes with contrasting intensity of lights and producing clear images using the built-in WDR Pro. With the super low lux CMOS image sensor, the camera is capable of providing a color live view in near darkness.

Models

ModelGV-BX4700-E
IrisP‐Iris
Focal Length(mm)3 ~ 10.5 mm
Maximum ApertureF/1.4
Image Format1/2.7”
  • 1/3" progressive scan super low lux CMOS
  • Min. illumination at 0.02 lux
  • Dual streams from H.265, H.264, and MJPEG
  • Up to 20 fps at 2592 x 1520, 25 fps at 2560 x 1440, 30 fps at 2048 x 1520
  • Day and Night function (with removable IR-cut filter)
  • P-Iris for auto iris adjustment
  • Vandal resistance (IK10 for metal casing)
  • Ingress protection (IP67)
  • Built-in heater and fan
  • TV-out support
  • Recording assigned by GV-Edge Recording Manager (Windows & Mac version)
  • Two-way audio
  • Wide Dynamic Range Pro (WDR Pro)
  • 3D noise reduction
  • Smart streaming
  • Defog
  • Motion detection
  • Tampering alarm
  • Privacy mask
  • IP address filtering
  • Power supplied through PoE+ (IEEE 802.3at)
  • Megapixel lens
  • Wide temperature tolerance (-40°C ~ 50°C / -40°F ~ 122°F)
  • Supports iPhone, iPad, Android & 3GPP
  • 31 languages on Web interface
  • ONVIF (Profile S) conformant

Note:
  • Smart streaming requires either GV-DVR / NVR V8.7.0.0 or GV-VMS V16.10.0.0.
  • Specifications are subject to change without notice.


Note:
  • Smart streaming requires either GV-DVR / NVR V8.7.0.0 or GV-VMS V16.10.0.0.
  • Specifications are subject to change without notice.
Model No Name Details
GV-Mount300 Convex Corner Adapter Kit Dimensions: 238.6 x 409.5 mm (9.4 x 16.1")
Weight: 4.27 kg (9.41 lb)
GV-Mount310 Concave Corner Adapter Kit Dimensions: 123.3 x 393.1 mm (4.9 x 15.5")
Weight: 2.96 kg (6.53 lb)
GV-Mount400 Pole Mount Bracket Kit (Ø 4 ~ 6) Bracket: 241 x 161 mm (9.5 x 6.3")
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 4 ~ 6"
GV-Mount410 Pole Mount Bracket Kit (Ø 6 ~ 7.5") Bracket: 241 x 161 mm (9.5 x 6.3")
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 6 ~ 7.5"
GV-PA482 PoE Adapter The GV-PA482 PoE adapter is designed to provide power and network connection to GV-BX2510-E / 5310-E over a single Ethernet cable.
GV-POE Switch The GV-POE Switch is designed to provide power along with network connection for IP devices. The GV-POE Switch is available in various models with different numbers and types of ports.
  • H.265 IR Arctic Box Camera
  • Screw Anchor x 4
  • Screw x 4
  • Washer x 4
  • Big Torx Wrench
  • Small Torx Wrench
  • Silica Gel Bag x 2
  • Adhesive Tape x 2
  • GV-IPCAM Software DVD
  • GV-Software DVD
  • Warranty Card​
