GV-BX4700

4MP H.265 Super Low Lux WDR Pro D/N Box IP Camera

The GV‐BX4700 is a series of indoor IP cameras containing a varifocal and a fixed focal model. GV‐BX4700 can support H.265 video codec to achieve better compression ratio while maintaining high picture quality at reduced network bandwidths. The camera is equipped with a Super Low Lux CMOS image sensor which allows the camera to provide a color live view in near darkness. The camera features a mini USB port which supports wireless connection through a GV‐WiFi Adapter (optional) or external storage using a USB hard drive.

Models

ModelGV-BX4700-3V
IrisP-Iris
Focal Length (mm)3 ~10.5mm
Horizontal FOV78°~31°
Maximum ApertureF/1.4
Image Format1/2.7"
  • 1/3" progressive scan super low lux CMOS
  • Min. illumination at 0.02 lux
  • Triple streams from H.265, H.264 and MJPEG
  • Up to 20 fps at 2592 x 1520, 25 fps at 2560 x 1440, 30 fps at 2048 x 1520
  • P-Iris for auto iris adjustment
  • Built-in / external microphone
  • Two-way audio capable
  • One sensor input and one alarm output
  • TV-out support
  • Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I) for local storage
  • Recording assigned by GV-Edge Recording Manager (Windows & Mac version)

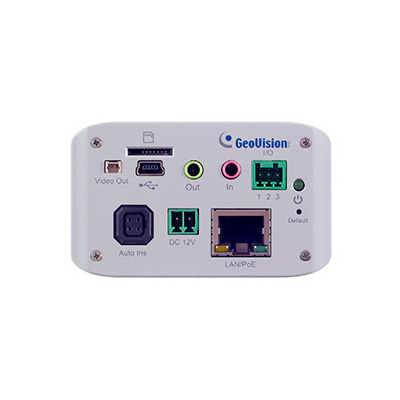

  • Mini USB slot for WiFi Adapter or USB hard drive
  • Wide Dynamic Range Pro (WDR Pro)
  • 3D noise reduction
  • Face Detection
  • Smart streaming
  • Defog
  • Privacy mask
  • IP address filtering
  • DC 12V / PoE (IEEE 802.3af)
  • Day and Night function (with removable IR-cut filter)
  • Megapixel varifocal lens
  • Support for iPhone, iPad, Android & 3GPP
  • 31 languages on Web interface
  • ONVIF (Profile S, T) conformant
Note:
  • Smart streaming requires either GV‐DVR / NVR V8.7.0.0 or GV‐VMS V16.10.3.
  • The signal range and data throughput may vary depending on the network conditions and environmental factors.
  • With the standard installation, the supporting rack is not included in the packing list.
  • GV-Housing103 only works with GV-Mount300-1, GV-Mount310-1, GV-Mount400-1 and GV-Mount410-1.
  • Specifications are subject to change without notice.
  • Face detection requires GV-VMS 18.1 or later.

Note:
  • Smart streaming requires either GV‐DVR / NVR V8.7.0.0 or GV‐VMS V16.10.3.
  • The signal range and data throughput may vary depending on the network conditions and environmental factors.
  • With the standard installation, the supporting rack is not included in the packing list.
  • GV-Housing103 only works with GV-Mount300-1, GV-Mount310-1, GV-Mount400-1 and GV-Mount410-1.
  • Specifications are subject to change without notice.
  • Face detection requires GV-VMS 18.1 or later.
Model No Name Details
GV-Mount300-1 Convex Corner Adapter Kit Dimensions: 238.6 x 395.2 x 210 mm (9.4 x 15.5 x 8.2")
Weight: 4.27 kg (9.41 lb)
GV-Mount310-1 Concave Corner Adapter Kit Dimensions: 111.2 x 369.9 x 210 mm  (4.37 x 14.5 x 8.2")
Weight: 2.96 kg (6.53 lb)
GV-Mount400-1 Pole Mount Bracket Kit (Ø 4 ~ 6") Bracket: 68.4 x 240 x 163 mm (2.69 x 9.44 x 6.41")
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 4 ~ 6"
GV-Mount410-1 Pole Mount Bracket Kit (Ø 6 ~ 7.5") Bracket: 68.4 x 240 x 163 mm (2.69 x 9.44 x 6.41")
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 6 ~ 7.5"
GV-Housing102 Housing Box (with heater and fan) Dimensions: 406 x 145 x 109 mm (16 x 5.7 x 4.3")
Weight: 4.69 kg (10.34 lb) (including Supporting Tube)
Start-up Temperature: -30°C ~ 50°C (-22°F ~ 122°F)
Operation Temperature: ‐40°C ~ 50°C (-40°F ~ 122°F)
Heater: 15°C (59°F) On / 25°C (77°F) Off
Fan: 35°C (95°F) On / 25°C (77°F) Off
Power board: 24V AC / 12V DC input
GV-BX5700-8F not supported
GV-Housing103 (not supported by GV-BX4700-8F) Housing Box (with IR) Dimensions: 404 x 128 x 257 mm (15.91 x 5.04 x 10.12")
Weight: 7 kg (15.43 lb)
Start-up Temperature: ‐20°C ~ 50°C (‐4°F ~ 122°F)
Operation Temperature: ‐30°C ~ 50°C (‐22°F ~ 122°F)
IR: 6 IR LEDs with up to 60m (196.85ft) IR effective distance
Power: 12V DC, 1A input

GV-Housing103 only works with GV-Mount300-1, GV-Mount310-1, GV-Mount400-1 and GV-Mount410-1.
Supporting Rack Dimensions: Ø 58 x 120 mm (2.28" x 4.72")
Weight: 0.1 kg (103 g)
GV-PA191 PoE Adapter GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-Relay V2 GV-Relay V2 expands GV-IP device voltage load. It has 4 relay outputs that can be set to normally open (NO) or normally closed (NC).
GV-WiFi Adaptor V2 Dimensions (H x W x D): 15 x 15 x 155 mm (0.59 x 0.59 x 6.10")
Weight: 0.01 kg (0.02 lb)
GV-POE Switch GV-POE Switch is designed to provide power along with network connection to IP devices. It is available in various models with different numbers and types of ports.
Power Adapter Contact our sales representatives for the countries and areas supported.
  • H.265 Box Camera
  • Terminal Block (2-Pin and 3-Pin)
  • Fixed Focal or Varifocal Megapixel Lens
  • Six Lens Rings (only for Varifocal Lens)
  • Video Out Wire
  • Camera Holder
  • Holder Screw x 2
  • Download Guide
  • Warranty Card
Note:
  • Smart streaming requires either GV‐DVR / NVR V8.7.0.0 or GV‐VMS V16.10.3.
  • The signal range and data throughput may vary depending on the network conditions and environmental factors.
  • With the standard installation, the supporting rack is not included in the packing list.
  • GV-Housing103 only works with GV-Mount300-1, GV-Mount310-1, GV-Mount400-1 and GV-Mount410-1.
  • Specifications are subject to change without notice.
  • Face detection requires GV-VMS 18.1 or later.
Note:
  • Smart streaming requires either GV‐DVR / NVR V8.7.0.0 or GV‐VMS V16.10.3.
  • The signal range and data throughput may vary depending on the network conditions and environmental factors.
  • With the standard installation, the supporting rack is not included in the packing list.
  • GV-Housing103 only works with GV-Mount300-1, GV-Mount310-1, GV-Mount400-1 and GV-Mount410-1.
  • Specifications are subject to change without notice.
  • Face detection requires GV-VMS 18.1 or later.
  • H.265 Box Camera
  • Terminal Block (2-Pin and 3-Pin)
  • Fixed Focal or Varifocal Megapixel Lens
  • Six Lens Rings (only for Varifocal Lens)
  • Video Out Wire
  • Camera Holder
  • Holder Screw x 2
  • Download Guide
  • Warranty Card
Note:
  • Smart streaming requires either GV‐DVR / NVR V8.7.0.0 or GV‐VMS V16.10.3.
  • The signal range and data throughput may vary depending on the network conditions and environmental factors.
  • With the standard installation, the supporting rack is not included in the packing list.
  • GV-Housing103 only works with GV-Mount300-1, GV-Mount310-1, GV-Mount400-1 and GV-Mount410-1.
  • Specifications are subject to change without notice.
  • Face detection requires GV-VMS 18.1 or later.
