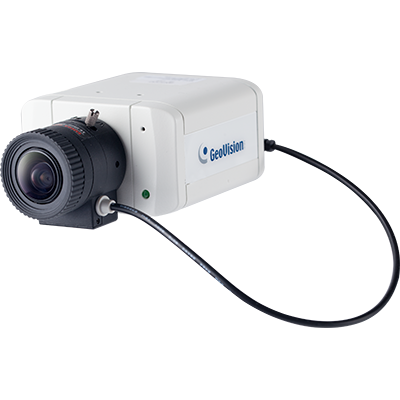

GV-BX2700

2MP H.265 Super Low Lux WDR Pro D/N Box IP Camera

The GV-BX2700 is a series of indoor IP cameras containing a varifocal and a fixed focal model. GV-BX2700 can support H.265 video codec to achieve better compression ratio while maintaining high picture quality at reduced network bandwidths. The camera is equipped with a Super Low Lux CMOS image sensor which allows the camera to provide a color live view in near darkness. The camera features a mini USB port which supports wireless connection through a GV-WiFi Adapter (optional) or external storage using a USB hard drive.

Models

ModelGV-BX2700-3VGV-BX2700-8F
IrisP-IrisFixed
Focal Length(mm)3~10.5 mm2.8 mm
Maximum ApertureF/1.4F/1.8
Image Format1/2.7"1/2.5"
  • 1/2.8" progressive scan super low lux CMOS
  • Min. illumination at 0.004 lux
  • Dual streams from H.265, H.264, and MJPEG
  • Up to 30 fps at 1920 × 1080
  • P-Iris for auto iris adjustment
  • Built-in / external microphone
  • Two-way audio
  • One sensor input and one alarm output
  • TV-out support
  • Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I) for local storage
  • Recording assigned by GV-Edge Recording Manager (Windows & Mac version)
  • Mini USB slot for WiFi Adapter or USB hard drive
  • Wide Dynamic Range Pro (WDR Pro)
  • 3D noise reduction
  • Smart streaming
  • Defog
  • Privacy mask
  • IP address filtering
  • DC 12V / PoE (IEEE 802.3af)
  • Day and Night function (with removable IR-cut filter)
  • Megapixel varifocal lens
  • Supports iPhone, iPad, Android & 3GPP
  • 31 languages on Web interface
  • ONVIF (Profile S) conformant

Note:
  • No memory card slot & local storage function for Argentina.
  • Smart streaming requires either GV‐DVR / NVR V8.7.0.0 or GV‐VMS V16.10.3.
  • The signal range and data throughput may vary depending on the network conditions and environmental factors.
  • With the standard installation, the supporting rack is not included in the packing list.
  • GV-Housing103 only works with GV-Mount300-1, GV-Mount310-1, GV-Mount400-1 and GV-Mount410-1.
  • Specifications are subject to change without notice.


Note:
  • No memory card slot & local storage function for Argentina.
  • Smart streaming requires either GV‐DVR / NVR V8.7.0.0 or GV‐VMS V16.10.3.
  • The signal range and data throughput may vary depending on the network conditions and environmental factors.
  • With the standard installation, the supporting rack is not included in the packing list.
  • GV-Housing103 only works with GV-Mount300-1, GV-Mount310-1, GV-Mount400-1 and GV-Mount410-1.
  • Specifications are subject to change without notice.
Model No Name Details
GV-Mount300 / GV-Mount300-1 Convex Corner Adapter Kit Dimensions: 238.6 x 409.5 mm (9.4 x 16.1")
Weight: 4.27 kg (9.41 lb)
GV-Mount310 / GV-Mount310-1 Concave Corner Adapter Kit Dimensions: 123.3 x 393.1 mm (4.9 x 15.5")
Weight: 2.96 kg (6.53 lb)
GV-Mount400 / GV-Mount400-1 Pole Mount Bracket Kit (Ø 4 ~ 6") Bracket: 241 x 161 mm (9.5 x 6.3")
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 4 ~ 6"
GV-Mount410 / GV-Mount410-1 Pole Mount Bracket Kit (Ø 6 ~ 7.5") Bracket: 241 x 161 mm (9.5 x 6.3")
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 6 ~ 7.5"
GV-Housing102 Housing Box (with heater and fan) Dimensions: 406 x 145 x 109 mm (16 x 5.7 x 4.3")
Weight: 4.69 kg (10.34 lb) (including Supporting Tube)
Start-up Temperature: -30°C ~ 50°C (-22°F ~ 122°F)
Operation Temperature: ‐40°C ~ 50°C (-40°F ~ 122°F)
Heater: 15°C (59°F) On / 25°C (77°F) Off
Fan: 35°C (95°F) On / 25°C (77°F) Off
Power board: 24V AC / 12V DC input
GV-BX5700-8F not supported
GV-Housing103 (not supported by GV-BX4700-8F) Housing Box (with IR) Dimensions: 404 x 128 x 257 mm (15.91 x 5.04 x 10.12")
Weight: 7 kg (15.43 lb)
Start-up Temperature: ‐20°C ~ 50°C (‐4°F ~ 122°F)
Operation Temperature: ‐30°C ~ 50°C (‐22°F ~ 122°F)
IR: 6 IR LEDs with up to 60m (196.85ft) IR effective distance
Power: 12V DC, 1A input
GV-PA191 PoE Adapter Power over Ethernet (PoE) Adapter The GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-Relay V2 The GV-Relay V2 is designed to expand the voltage load of GV IP devices. It provides 4 relay outputs, and each can be set as normally open (NO) or normally closed (NC) independently as per your requirement.
GV-WiFi Adaptor V2 Dimensions (H x W x D): 15 x 15 x 155 mm (0.59 x 0.59 x 6.10")
Weight: 0.01 kg (0.02 lb)
GV-POE Switch The GV-POE Switch is designed to provide power along with network connection for IP devices. The GV-POE Switch is available in various models with different numbers and types of ports.
Power Adapter Contact your sales representative for the countries and areas supported.
  • H.265 Box Camera
  • Terminal Block (2-Pin and 3-Pin)
  • Fixed Focal or Varifocal Megapixel Lens
  • Six Lens Rings (only for Varifocal Lens)
  • Video Out Wire
  • Camera Holder
  • Holder Screw x 2
  • GV-IPCAM Software DVD
  • GV-Software DVD
  • Warranty Card
