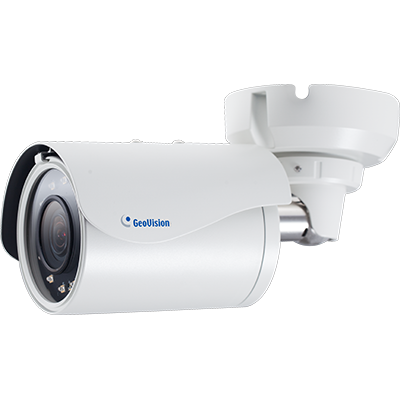

GV-BL5700

5MP H.265 Low Lux WDR IR Bullet IP Camera

GV-BL5700 is an outdoor camera for optimal day and night surveillance. GV-BL5700 can support H.265 video codec to achieve better compression ratio while maintaining high quality picture at reduced network bandwidths. For night operations, the camera allows up to 30 m (98.4 ft) IR effective distance. It also uses P-iris to produce images with better clarify and contrast.

Models

ModelGV-BL5700
IrisP-Iris
Focal Length(mm)4~8mm
Maximum ApertureF/1.65
Image Format1/1.8"
  • 1/1.8" progressive scan low lux CMOS
  • Dual streams from H.265, H.264, and MJPEG
  • Up to 30 fps at 2592 × 1944
  • P-iris lens for auto iris control
  • Vandal resistance (IK10 for metal casing)
  • Ingress protection (IP67)
  • Day and Night function (with removable IR-cut filter)
  • Intelligent IR
  • IR distance up to 30 m (98.4 ft)
  • Two-way audio
  • One alarm input and sensor output
  • Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I) for local storage
  • DC 12V / PoE (IEEE 802.3af)
  • Wide Dynamic Range (WDR)
  • Smart streaming
  • Defog
  • Text overlay
  • Tampering alarm
  • 3D noise reduction
  • IP address filtering
  • Recording assigned by GV-Edge Recording Manager (Windows & Mac version)
  • Supports iPhone, iPad, Android & 3GPP
  • 31 languages on Web interface
  • ONVIF (Profile S) conformant

Note:
  • No memory card slot & local storage function for Argentina.
  • Smart streaming requires either GV‐DVR / NVR V8.7.0.0 or GV‐VMS V16.10.3.
  • Specifications are subject to change without notice.


Note:
  • No memory card slot & local storage function for Argentina.
  • Smart streaming requires either GV‐DVR / NVR V8.7.0.0 or GV‐VMS V16.10.3.
  • Specifications are subject to change without notice.
Model No Name Details
GV-Mount300 Convex Corner Adapter Kit Dimensions: 238.6 x 409.5 mm (9.4 x 16.1")
Weight: 4.27 kg (9.41 lb)
GV-Mount310 Concave Corner Adapter Kit Dimensions: 123.3 x 393.1 mm (4.9 x 15.5")
Weight: 2.96 kg (6.53 lb)
GV-Mount400 Pole Mount Bracket Kit (Ø 4 ~ 6) Bracket: 241 x 161 mm (9.5 x 6.3")
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 4 ~ 6"
GV-Mount410 Pole Mount Bracket Kit (Ø 6 ~ 7.5") Bracket: 241 x 161 mm (9.5 x 6.3")
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 6 ~ 7.5"
GV-PA191 PoE Adapter Power over Ethernet (PoE) Adapter The GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-Relay V2 The GV-Relay V2 is designed to expand the voltage load of GV IP devices. It provides 4 relay outputs, and each can be set as normally open (NO) or normally closed (NC) independently as per your requirement.
GV-POE Switch The GV-POE Switch is designed to provide power along with network connection for IP devices. The GV-POE Switch is available in various models with different numbers and types of ports.
Power Adapter Contact your sales representative for the countries and areas supported.
  • H.265 Bullet Camera
  • Sun-Shield Cover
  • Screw for Sun‐shield Cover x 2
  • Washer x 2
  • Screw for Supporting Rack x 3
  • Screw anchor x 3
  • Silica Gel Bag x 2
  • Screw for Mounting Kit x 3
  • Nut for Mounting Kit x 3
  • Hex Wrench
  • RJ-45 Connector x 2
  • GV-IPCAM Software DVD
  • GV-Software DVD
  • Warranty Card
