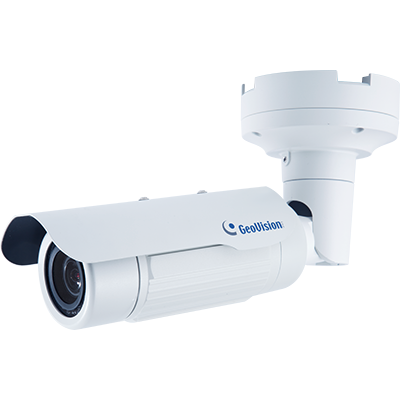

GV-BL5311

5MP H.264 2x zoom WDR IR Bullet IP Camera

GV-BL5311 is an outdoor Bullet Camera that is equipped with the motorized focus/zoom, users can remotely adjust the focus and zoom from the Web interface. Using its P-Iris, the camera also allows for precise control of exposure, producing images with better clarity and contrast.

Models

ModelGV-BL5311
IrisP-Iris
Focal Length(mm)4.5~9mm
Maximum ApertureF/1.2
Image Format1/2.7"
  • 5MP progressive scan CMOS
  • Dual streams from H.264 and MJPEG
  • Up to 10 fps at 2560 × 1920
  • Intelligent IR
  • IR distance up to 40 m (131 ft)
  • P-iris lens for auto iris control
  • Motorized varifocal lens for remote focus / zoom adjustment
  • Vandal resistance (IK10 for metal casing)
  • Ingress protection (IP67)
  • Tolerant to extreme temperatures (-20°C ~ 50°C/-4°F ~ 122°F)
  • One alarm input and sensor output
  • Built-in micro SD card slot (SD/SDHC) for local storage
  • Recording assigned by GV-Edge Recording Manager (Windows & Mac version)
  • Two-way audio
  • Wide Dynamic Range (WDR)
  • 2D noise reduction
  • Defog
  • Motion detection
  • Tampering alarm
  • Privacy mask
  • IP address filtering
  • DC 12V / AC 24V / PoE (IEEE 802.3af)
  • Day and Night function (with removable IR-cut filter)
  • Supports iPhone, iPad, Android & 3GPP
  • 31 languages on Web interface
  • ONVIF (Profile S) conformant

Note:
  • No memory card slot & local storage function for Argentina.
  • The power adapter can be excluded upon request.
  • Specifications are subject to change without notice.


Note:
  • No memory card slot & local storage function for Argentina.
  • The power adapter can be excluded upon request.
  • Specifications are subject to change without notice.
Model No Name Details
GV-Mount300 Convex Corner Adapter Kit Dimensions: 238.6 x 409.5 mm (9.4 x 16.1")
Weight: 4.27 kg (9.41 lb)
GV-Mount310 Concave Corner Adapter Kit Dimensions: 123.3 x 393.1 mm (4.9 x 15.5")
Weight: 2.96 kg (6.53 lb)
GV-Mount400 Pole Mount Bracket Kit (Ø 4 ~ 6) Bracket: 241 x 161 mm (9.5 x 6.3")
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 4 ~ 6"
GV-Mount410 Pole Mount Bracket Kit (Ø 6 ~ 7.5") Bracket: 241 x 161 mm (9.5 x 6.3")
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 6 ~ 7.5"
GV-PA191 PoE Adapter Power over Ethernet (PoE) Adapter The GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-Relay V2 The GV-Relay V2 is designed to expand the voltage load of GV IP devices. It provides 4 relay outputs, and each can be set as normally open (NO) or normally closed (NC) independently as per your requirement.
GV-POE Switch The GV-POE Switch is designed to provide power along with network connection for IP devices. The GV-POE Switch is available in various models with different numbers and types of ports.
Power Adapter Contact your sales representative for the countries and areas supported.
  • Bullet Camera
  • Self Tapping Screw x 3
  • Plastic Screw Anchor x 3
  • Torx Wrench x 3
  • Sun-Shield Cover Kit (1 Sun-Shield Cover, 2 Philips Head Screws, 2 Plastic Screw Spacers and 2 Hexagon Screws included)
  • Silica Gel Bag x 2
  • 2-Pin Terminal Block
  • 3-Pin Terminal Block
  • Power Adapter
  • Installation Sticker
  • Ruler
  • Stand Kit (Conduit Converter, PG21 Conduit Connector, RJ-45 Connector, M3 Screw x 2, Cable Tie)
  • Mounting Kit (M4 Screw x 3, Nut x 3, Plate x 3)
  • GV-IPCAM H.264 Software DVD
  • GV-NVR Software DVD
  • Warranty Card
