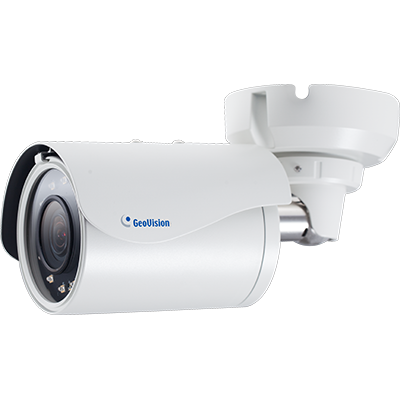

GV-BL3700

3MP H.265 Super Low Lux WDR Pro IR Bullet IP Camera

GV-BL3700 is an outdoor camera for optimal day and night surveillance. The camera can support H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. For night operations, the camera allows up to 30 m (98.4 ft) IR effective distance. The camera is capable of not only providing a color live view in near darkness but also under contrasting light intensities using super low lux CMOS image sensor, and WDR pro. It also uses P-iris to produce images with better clarify and contrast.

Models

ModelGV-BL3700
IrisP-Iris
Focal Length(mm)2.8~12mm
Maximum ApertureF/1.7
Image Format1/2.7"
  • 1/2.8" progressive scan super low lux CMOS
  • Min. illumination at 0.01 lux
  • Dual streams from H.265, H.264, and MJPEG
  • Up to 30 fps at 2048 × 1536
  • P-iris lens for auto iris control
  • Vandal resistance (IK10 for metal casing)
  • Ingress protection (IP67)
  • Day and Night function (with removable IR-cut filter)
  • Intelligent IR
  • IR distance up to 30 m (98.4 ft)
  • Two-way audio
  • One alarm input and sensor output
  • Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I) for local storage
  • DC 12V / PoE (IEEE 802.3af)
  • Wide Dynamic Range Pro (WDR Pro)
  • Smart streaming
  • Defog
  • Text overlay
  • Tampering alarm
  • 3D noise reduction
  • IP address filtering
  • Recording assigned by GV-Edge Recording Manager (Windows & Mac version)
  • Supports iPhone, iPad, Android & 3GPP
  • 31 languages on Web interface
  • ONVIF (Profile S) conformant

Note:
  • No memory card slot & local storage function for Argentina.
  • Smart streaming requires either GV‐DVR / NVR V8.7.0.0 or GV‐VMS V16.10.3.
  • Specifications are subject to change without notice.


Note:
  • No memory card slot & local storage function for Argentina.
  • Smart streaming requires either GV‐DVR / NVR V8.7.0.0 or GV‐VMS V16.10.3.
  • Specifications are subject to change without notice.
Model No Name Details
GV-Mount300 Convex Corner Adapter Kit Dimensions: 238.6 x 409.5 mm (9.4 x 16.1")
Weight: 4.27 kg (9.41 lb)
GV-Mount310 Concave Corner Adapter Kit Dimensions: 123.3 x 393.1 mm (4.9 x 15.5")
Weight: 2.96 kg (6.53 lb)
GV-Mount400 Pole Mount Bracket Kit (Ø 4 ~ 6) Bracket: 241 x 161 mm (9.5 x 6.3")
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 4 ~ 6"
GV-Mount410 Pole Mount Bracket Kit (Ø 6 ~ 7.5") Bracket: 241 x 161 mm (9.5 x 6.3")
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 6 ~ 7.5"
GV-PA191 PoE Adapter Power over Ethernet (PoE) Adapter The GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-Relay V2 The GV-Relay V2 is designed to expand the voltage load of GV IP devices. It provides 4 relay outputs, and each can be set as normally open (NO) or normally closed (NC) independently as per your requirement.
GV-POE Switch The GV-POE Switch is designed to provide power along with network connection for IP devices. The GV-POE Switch is available in various models with different numbers and types of ports.
Power Adapter Contact your sales representative for the countries and areas supported.
  • H.265 Bullet Camera
  • Sun-Shield Cover
  • Screw for Sun‐shield Cover x 2
  • Washer x 2
  • Screw for Supporting Rack x 3
  • Screw anchor x 3
  • Silica Gel Bag x 2
  • Screw for Mounting Kit x 3
  • Nut for Mounting Kit x 3
  • Hex Wrench
  • RJ-45 Connector x 2
  • GV-IPCAM Software DVD
  • GV-Software DVD
  • Warranty Card

Note:
  • No memory card slot & local storage function for Argentina.
  • Smart streaming requires either GV‐DVR / NVR V8.7.0.0 or GV‐VMS V16.10.3.
  • Specifications are subject to change without notice.

Note:
  • No memory card slot & local storage function for Argentina.
  • Smart streaming requires either GV‐DVR / NVR V8.7.0.0 or GV‐VMS V16.10.3.
  • Specifications are subject to change without notice.
