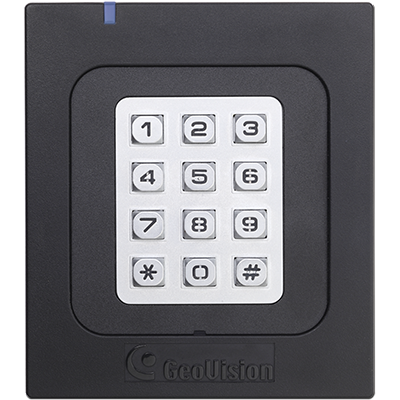

GV-AS1110

IP Controller with Built-in Reader

GV-AS1110 is a single door controller with a built-in reader. The TCP/IP network port on GV-AS1110 allows it to add two more network card readers for entry and exit applications. GV-AS1110 has the capability to store up to one thousand cards under standalone mode and up to 40,000 cards when connected to GV-ASManager. Programming of GV-AS1110 can be done either on the keypad or from the software GV-ASManager. GV-AS1110 is suitable for controlling doors, parking gates and access to elevator call buttons.
  • 1 door (one-way and two-way control)
  • 1,000 / 40,000 cards (standalone / networked mode)
  • Easy programming from keypad
  • Built-in 2 digital inputs and 1 relay outputs
  • 1 network interface for connection with GV-ASManager and up to 2 TCP/IP reader
  • Built-in 13.56 MHz Reader
  • Support for GV-Proximity Cards with GID (Geovision Identifier) to enhance security
  • Built-in tampering alarm sensor
  • Weather-proof and IP66-compliant housing (for outdoor use)
  • Anti-Passback (APB) support

Note:
  • GV-AS1110 does not support 3rd party access control software and 3rd party readers.
  • GV-AS1110 is a controller with a built-in card reader. GV-AS1110 cannot be used as an independent card reader.
  • If you are using third-party cards or key fobs, the reader must be under UID mode.
  • Specifications are subject to change without notice.


Note:
  • GV-AS1110 does not support 3rd party access control software and 3rd party readers.
  • GV-AS1110 is a controller with a built-in card reader. GV-AS1110 cannot be used as an independent card reader.
  • If you are using third-party cards or key fobs, the reader must be under UID mode.
  • Specifications are subject to change without notice.
Model No Name Details
GV-MountA900 100 x 68 mm (3.9 x 2.7")
Supported Power Box Type:Single Gang (US standard)
Push Button Switch The push button switch can be integrated with access control system, allowing door exit by momentarily activating or deactivating the electric locking device. Both American standard and European standard push buttons are available.
GV-IB25 / 65 / 85 Infrared Button The GV-IB25 / 65 / 85 Infrared Button detects infrared movement within 3 to 12 cm and allows you to open the door with a wave of hand.
Electric Lock Three types of electric locks are available: electromagnetic lock, electric bolt and electric strike.
GV-AS ID Card & GV-AS ID Key Fob For Card Mode, the GV-AS ID Card / Tag is required. 13.56 MHz cards and tags are available.
  • GV-AS1110
  • Power Adaptor 12V DC / 1.25A
  • DC Wire
  • Screw x 2
  • Screw Anchor x 2
  • Front Cover Plate x 2
  • Enroll Card
  • Delete Card
  • GV-AS ID F Card x 20
  • Software CD
  • Warranty Card​

Note:
  • GV-AS1110 does not support 3rd party access control software and 3rd party readers.
  • GV-AS1110 is a controller with a built-in card reader. GV-AS1110 cannot be used as an independent card reader.
  • If you are using third-party cards or key fobs, the reader must be under UID mode.
  • Specifications are subject to change without notice.

Connecting GV-AS Controller to GV-Reader via TCP/IP

Installing GV-AS1110 with GV-Mount A900
