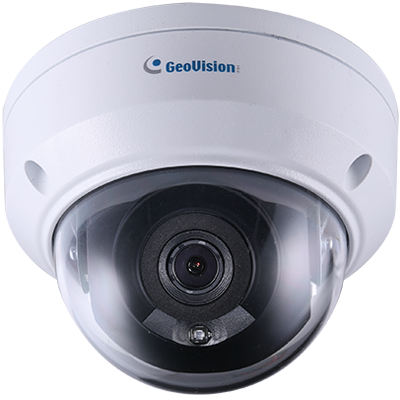

GV-ADR4702

4MP H.265 Low Lux WDR IR Mini Fixed Rugged IP Dome

The Mini Fixed Rugged IP Dome is an outdoor, fixed, network camera equipped with an automatic IR-cut filter and an IR LED for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. The camera adheres to IP67 and IK10 standards, and can be powered through PoE.

Models

ModelGV-ADR4702-0FGV-ADR4702-1F
IrisFixedFixed
Focal Length (mm)2.8mm4mm
Horizontal FOV101°76°
Maximum ApertureF/2.0F/2.0
Image Format1/3"1/3"
  • 1/3" progressive scan low lux CMOS sensor
  • Min. illumination at 0.03 lux
  • Triple streams from H.265, H.264 or MJPEG
  • Up to 20 fps at 2592 x 1520
  • Intelligent IR
  • IR distance up to 30 m (100 ft)
  • Day and Night function (with removable IR-cut filter)
  • Ingress protection (IP67)
  • Vandal resistance (IK10)
  • DC 12V / PoE (IEEE 802.3af)
  • Wide Dynamic Range (WDR)
  • Defog
  • 3D noise reduction
  • Motion detection
  • Text overlay
  • Privacy mask
  • ONVIF (Profile S, T) conformant
  • CE, FCC, RoHS, UL compliant

Note:
  • It is required to apply patch files to all the supported software.
  • Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  • Specifications are subject to change without notice.


Note:
  • It is required to apply patch files to all the supported software.
  • Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  • Specifications are subject to change without notice.
Model No Name Details
GV-Mount107 Pendant Bracket Dimensions: Φ120 x 334 mm (Φ4.72" x 13.15")
Weight: 0.74 kg (1.63 lb)
*must be used with GV-Mount213
GV-Mount211P Wall Mount Bracket Dimensions: Φ233 x 126 x 126 mm / (Φ9.2 x 5 x 5")
Weight: 1 kg (2.2 lb)
GV-Mount213 Wall / Ceiling Box Mount Dimensions: Φ109 x 39 mm (Φ4.3" x 1.5")
Weight: 0.2 kg (0.44 lb)
GV-Mount300-2 Convex Corner Mount Dimensions: 137 x 233 x 160 mm (5.4" x 9.17" x 6.3")
Weight: 1.65 kg (3.64 lb)
GV-Mount310-2 Concave Corner Mount Dimensions: 111.2 x 369.9 x 210 mm (2.6" x 11.4" x 6.6")
Weight: 1.65 kg (3.64 lb)
GV-Mount420 Pole Mount Bracket Dimensions: Φ120 x 120 x 53.4 mm (Φ4.7" x 4.7" x 2.1")
Weight: 0.45 kg (0.99 lb)
Steel Strap Diameter: Φ 67 ~ 127 mm (Φ2.6"~ 5")
*must be used with GV-Mount211P
GV-Mount704 Extension Tube Dimensions: Φ3.5 x 10 or 20 or 30 or 50 cm (Φ1.38 x 3.9 or 7.9 or 11.8 or x 19.7")
Weight: 225 g or 360 g or 500 g or 780 g (0.5 lb or 0.79 lb or 1.1 lb or 1.72 lb)
*must be used with GV-Mount107
GV-PA191 PoE Adapter Power over Ethernet (PoE) Adapter The GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-POE Switch The GV-POE Switch is designed to provide power along with network connection for IP devices.
The GV-POE Switch is available in various models with different numbers and types of ports.
Power Adapter Contact our sales representatives for the countries and areas supported.
  • GV-ADR4702 IR Mini Fixed Rugged IP Dome
  • Waterproof Rubber Set
  • Screw Kit
  • Drill Template Paster
  • Download Guide
  • Warranty Card
