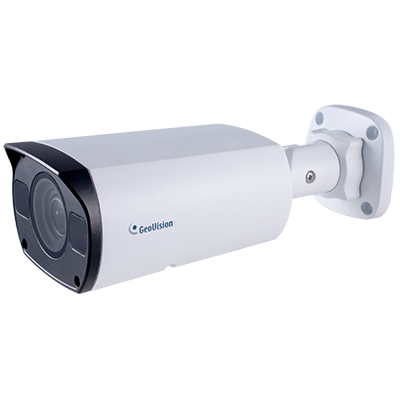

GV-ABL4712

4MP H.265 4.3x Zoom Low Lux WDR Pro IR Bullet IP Camera

GV-ABL4712 is an outdoor network camera equipped with an automatic IR-cut filter and an IR LED for day and night surveillance. With its motorized varifocal lens, the user can zoom and focus the camera from the Web interface. The camera also supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. GV-ABL4712 adheres to IP67 standard, and can be powered through PoE.

Models

ModelGV-ABL4712
IrisFixed
Focal Length (mm)2.8~12mm
Horizontal FOV27°~91°
Maximum ApertureF/1.4
Image Format1/3"
  • 1/3" progressive scan low lux CMOS sensor
  • Min. illumination at 0.005 lux
  • Triple streams from H.265, H.264 or MJPEG
  • Up to 20 fps at 2592 x 1520, 25 fps at 2560 x 1440, 30 fps at 2048 x 1520
  • Motorized varifocal lens for remote focus / zoom adjustment
  • Intelligent IR
  • IR distance up to 30 m (100 ft)
  • Day and Night function (with removable IR-cut filter)
  • Ingress protection (IP67)
  • Built-in micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10) for local storage
  • Two-way audio
  • DC 12V / PoE (IEEE 802.3af)
  • Wide Dynamic Range Pro (WDR Pro)
  • Defog
  • 3D noise reduction
  • Motion detection
  • Text overlay
  • Privacy mask
  • ONVIF (Profile G, S, T) conformant
  • CE, FCC, RoHS, UL compliant

Note:
  • It is required to apply patch files to all the supported software.
  • Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  • Specifications are subject to change without notice.


Note:
  • It is required to apply patch files to all the supported software.
  • Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  • Specifications are subject to change without notice.
Model No Name Details
GV-Mount300-2 Convex Corner Mount Dimensions: 137 x 233 x 160 mm (5.4" x 9.17" x 6.3")
Weight: 1.65 kg (3.64 lb)
GV-Mount310-2 Concave Corner Mount Dimensions: 111.2 x 369.9 x 210 mm (2.6" x 11.4" x 6.6")
Weight: 1.65 kg (3.64 lb)
GV-Mount420 Pole Mount Bracket Dimensions:Φ120 x 120 x 53.4 mm (Φ4.7" x 4.7" x 2.1")
Weight: 0.45 kg (0.99 lb)
Steel Strap Diameter: Φ 67 ~ 127 mm (Φ2.6"~ 5")
*must be used with GV-Mount503
GV-Mount503 Wall Mount Bracket Dimensions: 125 x 125 x 55 mm (4.9" x 4.9" x 2.2")
Weight: 0.74 kg (1.63 lb)
GV-PA191 PoE Adapter Power over Ethernet (PoE) Adapter The GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-POE Switch The GV-POE Switch is designed to provide power along with network connection for IP devices.
The GV-POE Switch is available in various models with different numbers and types of ports.
Power Adapter Contact our sales representatives for the countries and areas supported.
  • Bullet IP Camera
  • Waterproof Rubber Set
  • Screw Kit
  • Drill Template Paster
  • Download Guide
  • Warranty Card
