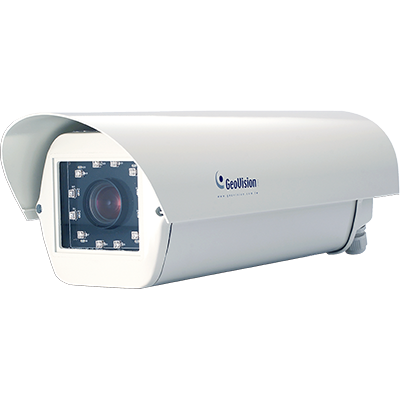

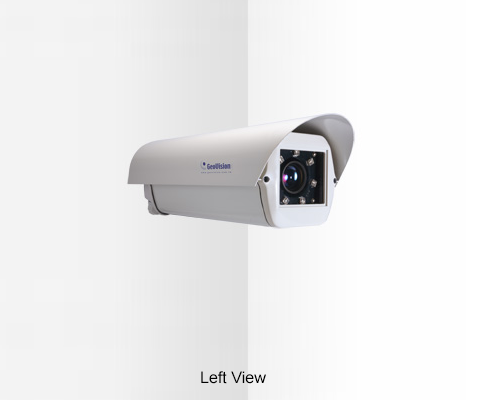

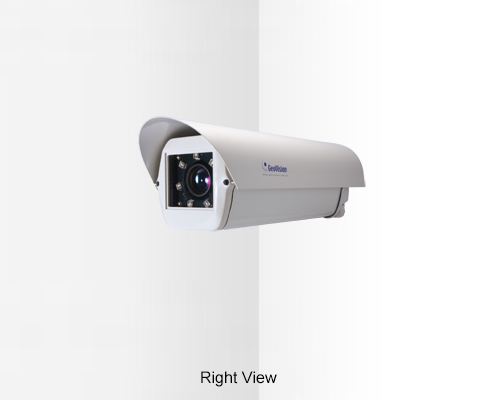

GV‐LPR CAM 10A

ANPR Camera

The GV-LPR CAM 10A is a 570 TVL resolution B/W analog camera designed for recognition of license plates on vehicles traveling at 200 km/h (124 mph) or less. With 7 high-efficient LEDs for an illumination range of 7 ~ 12 m (22.96 ~ 39.37 ft), the camera is able to automatically adjust its shutter speed to the scene and produce high-contrast video to the GV-LPR software that identifies license plates. It features a weather-proof (IP66) sun-shield housing for outdoor use, and is also able to work in environments with temperatures from as low as -20 °C (-4 °F) up to 50°C (122 °F).
  • 1/3" B/W Exview CCD
  • Recognition for reflective License Plate only
  • Maximum speed 200 km/h (124 mph)
  • Ingress protection (IP66)
  • Built-in 7 powerful IR LED illuminators
  • Built-in always-on fan
  • Sun-shield

Note :
  • GV-LPR CAM 10A comes with a free GV-DVR LPR Software, and the supplied GV-LPR Capture Dongle will need to be inserted to run the software (LPR Plugin) for GV-ASManager 4.1 or earlier. Since the free GV-DVR LPR Software is a Trial Edition, it can only capture the license plate images and does not support the license plate recognition function.
  • Specifications are subject to change without notice.


Note :
  • GV-LPR CAM 10A comes with a free GV-DVR LPR Software, and the supplied GV-LPR Capture Dongle will need to be inserted to run the software (LPR Plugin) for GV-ASManager 4.1 or earlier. Since the free GV-DVR LPR Software is a Trial Edition, it can only capture the license plate images and does not support the license plate recognition function.
  • Specifications are subject to change without notice.
Model No Name Details
  • AC Power Cable (110-125V, 10A) x 1
  • Power Adapter (100-240V, 12V/5A) x 1
  • Outdoor Mounting Bracket x 1
  • GV-LPR Software DVD x 1
  • GV-LPR Capture Dongle x 1

Note :
  • GV-LPR CAM 10A comes with a free GV-DVR LPR Software, and the supplied GV-LPR Capture Dongle will need to be inserted to run the software (LPR Plugin) for GV-ASManager 4.1 or earlier. Since the free GV-DVR LPR Software is a Trial Edition, it can only capture the license plate images and does not support the license plate recognition function.
  • Specifications are subject to change without notice.

Introduction to GV-LPR 10A / 20A Camera


Note :
  • GV-LPR CAM 10A comes with a free GV-DVR LPR Software, and the supplied GV-LPR Capture Dongle will need to be inserted to run the software (LPR Plugin) for GV-ASManager 4.1 or earlier. Since the free GV-DVR LPR Software is a Trial Edition, it can only capture the license plate images and does not support the license plate recognition function.
  • Specifications are subject to change without notice.
