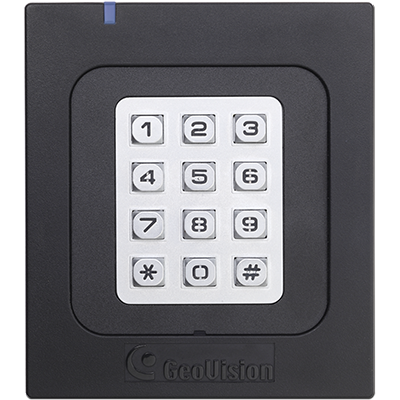

GV‐AS110

Controller with built-in Reader

Working as a standalone solution, GV-AS110 is a card reader and also a single door controller. It is possible to add one more card reader to GV-AS110 for entry and exit applications. GV-AS110 has the capability to store up to one thousand cards. When GV-AS110 is being used as a standalone unit, the programming is either done on the keypad or from the software GV-ASManager through the RS-485 connection.
An economic solution for access control, GV-AS110 is suitable for controlling doors, parking gates and access to elevator call buttons.
  • 1,000 / 40,000 cards (standalone / networked mode or RS-485 mode)
  • Easy programming from keypad
  • Built-in 3 digital inputs and 2 relay outputs
  • 1 Wiegand output (26 ~ 64 bits) for extra reader programming
  • 1 door expandable to 2 doors with optional GV-ASBox
  • Built-in 13.56 MHz Reader
  • Built-in tampering alarm sensor
  • Anti-Passback (APB) support

Note:
  • RS485 interface only supports GeoVision readers, while Wiegand interface supports both GeoVision and 3rd party readers (Wiegand 26~64 Bits).
  • GV-AS Controller does not support 3rd party access control software
  • GV-AS110 is a controller with a built-in card reader. GV-AS110 cannot be used as an independent card reader.
  • Specifications are subject to change without notice.


Note:
  • RS485 interface only supports GeoVision readers, while Wiegand interface supports both GeoVision and 3rd party readers (Wiegand 26~64 Bits).
  • GV-AS Controller does not support 3rd party access control software
  • GV-AS110 is a controller with a built-in card reader. GV-AS110 cannot be used as an independent card reader.
  • Specifications are subject to change without notice.
Model No Name Details
GV-ASBox Only works with GV-AS100 / 110 / 120. The device can add Network function, 1 Wiegand interface, 8 additional inputs and outputs to GV-AS100, GV-AS110 and GV-AS120.
GV-ASNet Only works with GV-AS100 / 110 / 120. This device can add Network function to GV-AS100, GV-AS110 and GV-AS120.
GV-Net / IO Card Only works with GV-AS100 / 110 / 120. GV-Net / IO Card can convert the standard RS-232 signal of one controller to RS-485, allowing the controller to connect to a computer.
GV-HUB V2 An easy way for serial port extension. This hub can add 4 RS-232/RS-485 serial ports through the GV-Hot Swap VMS V5´s USB port.
GV-COM V2 This unit can add 1 RS-232/RS-485 serial port through the GV-Hot Swap VMS V5´s USB port.
GV-COM V3 This unit can add 1 RS-485 port to your computer through a USB connector.
GV-MountA900 100 x 68 mm (3.9 x 2.7")
Supported Power Box Type:Single Gang (US standard)
Push Button Switch The push button switch can be integrated with access control system, allowing door exit by momentarily activating or deactivating the electric locking device. Both American standard and European standard push buttons are available.
GV-IB25 / 65 / 85 Infrared Button The GV-IB25 / 65 / 85 Infrared Button detects infrared movement within 3 to 12 cm and allows you to open the door with a wave of hand.
Electric Lock Three types of electric locks are available: electromagnetic lock, electric bolt and electric strike.
GV-AS ID Card & GV-AS ID Key Fob For Card Mode, the GV-AS ID Card / Tag is required. 13.56 MHz cards and tags are available.
  • GV-AS110
  • Power Adaptor 12V DC / 1.25A
  • Power Cord
  • Screw x 2
  • Screw Anchor x 2
  • Front Cover Plate x 2
  • Enroll Card
  • Delete Card
  • GV-AS ID F Card x 20
  • Warranty Card

Note:
  • RS485 interface only supports GeoVision readers, while Wiegand interface supports both GeoVision and 3rd party readers (Wiegand 26~64 Bits).
  • GV-AS Controller does not support 3rd party access control software
  • GV-AS110 is a controller with a built-in card reader. GV-AS110 cannot be used as an independent card reader.
  • Specifications are subject to change without notice.

Note:
  • RS485 interface only supports GeoVision readers, while Wiegand interface supports both GeoVision and 3rd party readers (Wiegand 26~64 Bits).
  • GV-AS Controller does not support 3rd party access control software
  • GV-AS110 is a controller with a built-in card reader. GV-AS110 cannot be used as an independent card reader.
  • Specifications are subject to change without notice.
